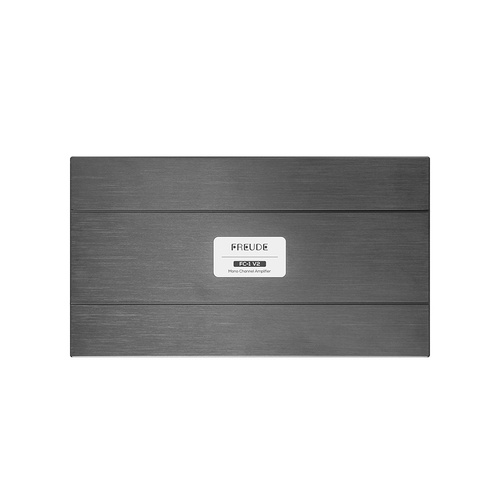

Freude FC-1 V2 Class D Mono Amplifier

Freude FC-1 V2 Class D Mono Amplifier

SKU:FC-1-V2

$599.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

Class D Mono Channel Amplifier

  • Class D amplifier: Max Power up to 1300W @ 1Ohm.
  • All-MOSFET DC-DC PWM power supply design.
  • Double-sided FR-4 PCB for sturdy structure and strong anti-interference capability.
  • Multiple protection functions for safety and stability.
  • Brushed finish, precision-machined aluminum alloy housing.
  • Compact size for easy installation.
  • Low heat generation, high energy efficiency - especially suitable for new energy vehicles.

Specifications

Model: FC-1 V2
Type: Class D Mono Channel Amplifier
Max Power @ 1Ohm: 1300 W
Nom Power @ 1Ohm: 1000 W
Max Power @ 2Ohm: 870 W
Nom Power @ 2Ohm: 600 W
Max Power @ 4Ohm: 600 W
Nom Power @ 4Ohm: 400 W
Operating Voltage : 10 - 16 VDC
Freq. Resp. Range: 10 Hz - 400 Hz
Low-Pass Direct Adju. Range:
 10 Hz - 50 Hz
Low-Pass Freq. Adju. Range: 52 Hz - 400 Hz
Signal Noise Ratio: >=90 dB
Input Sensitivity: 0.55V ~ 5V
Low-Pass Gain: 0 - 12 dB
Input Impedance: 20k Ohm
T.H.D.: 0.1 %
Weight: 1.77 kg
Dimensions (LxWxH): 226 x 126 x 50 mm
