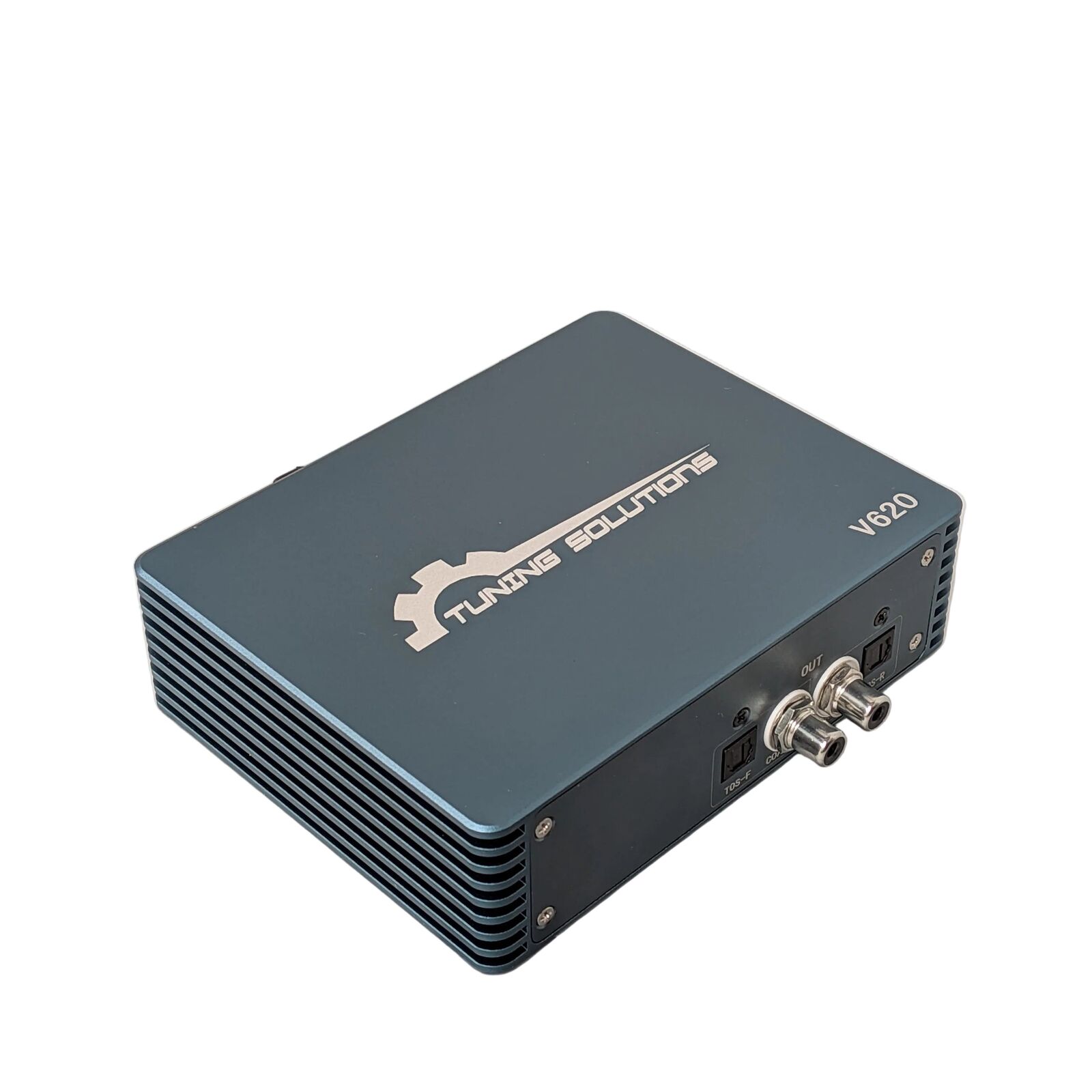

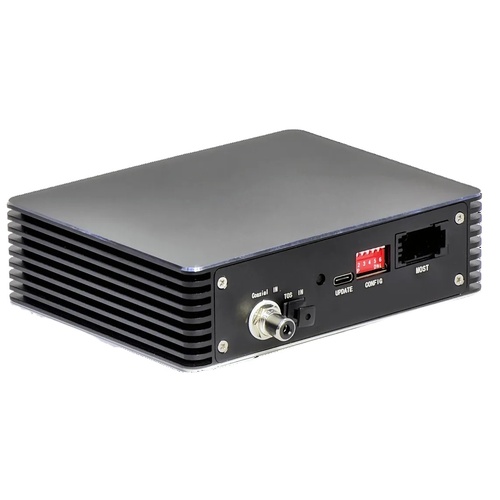

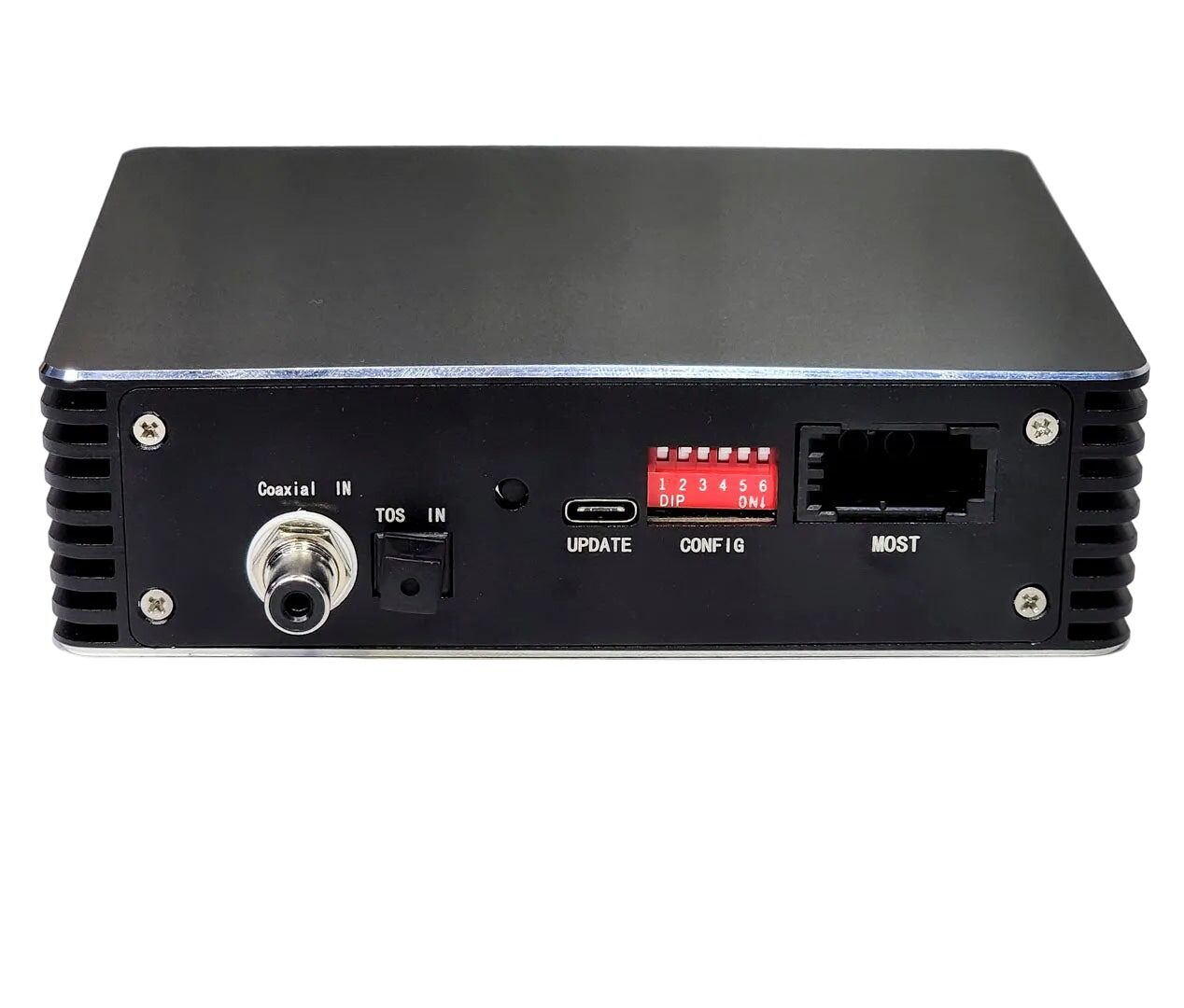

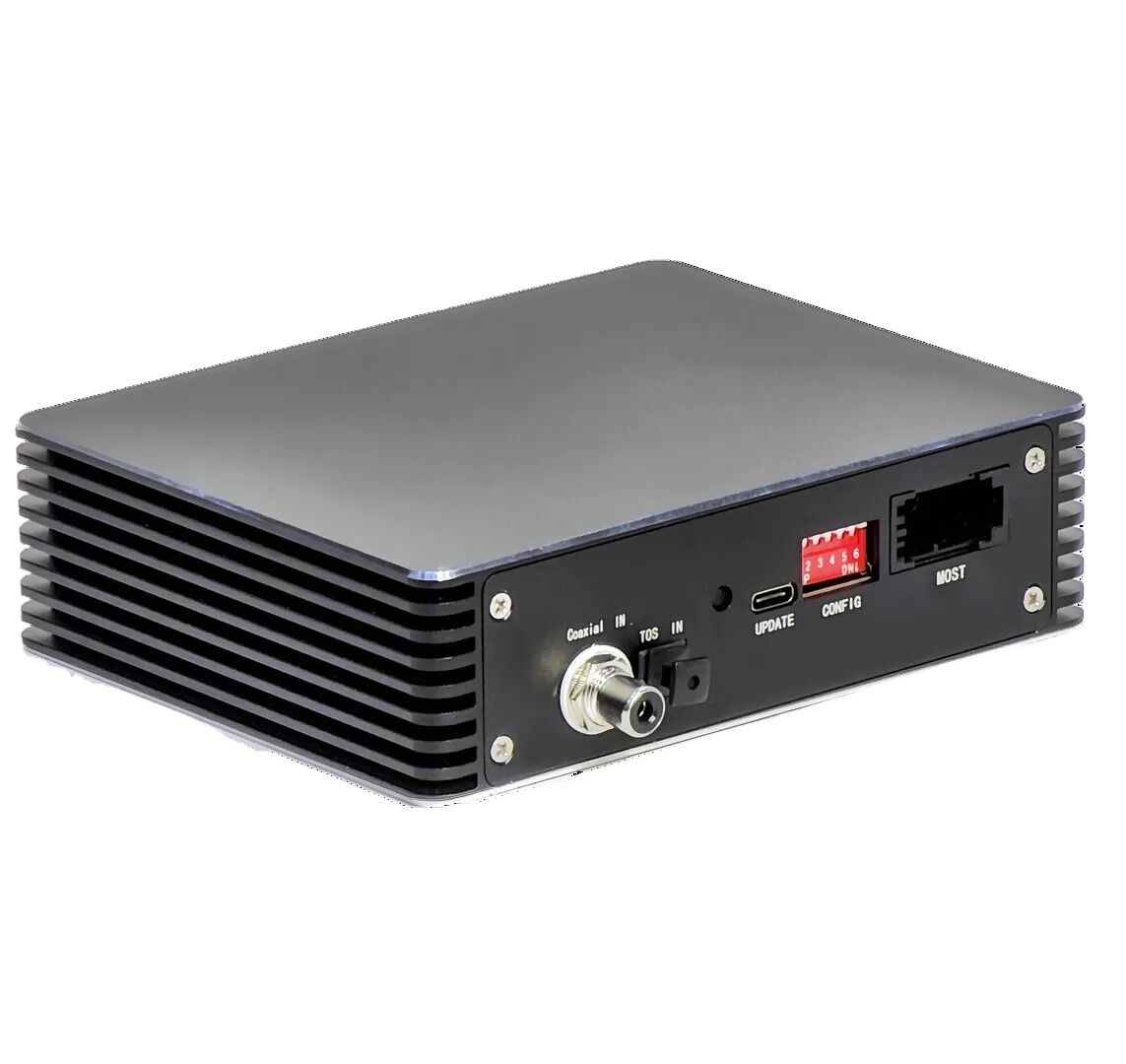

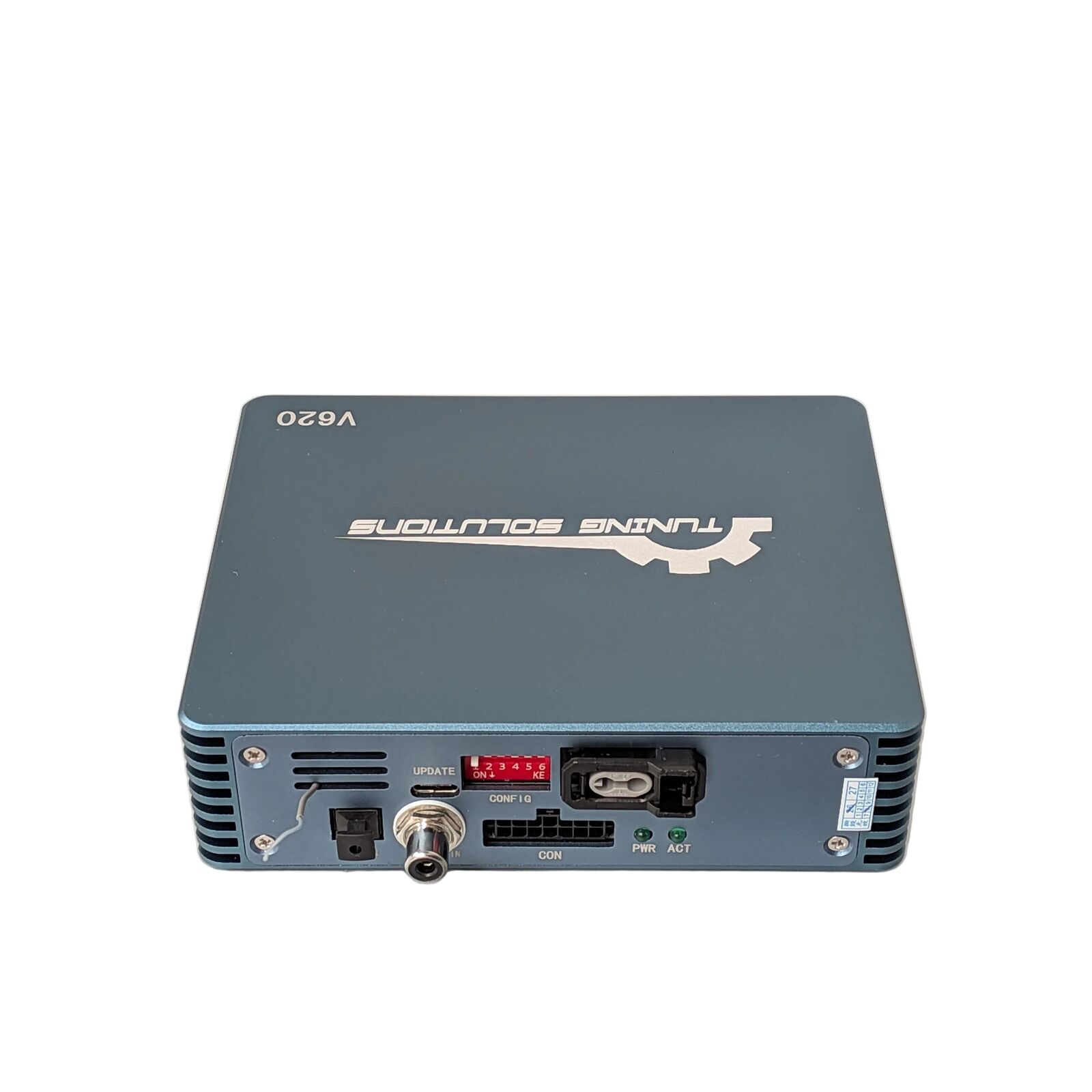

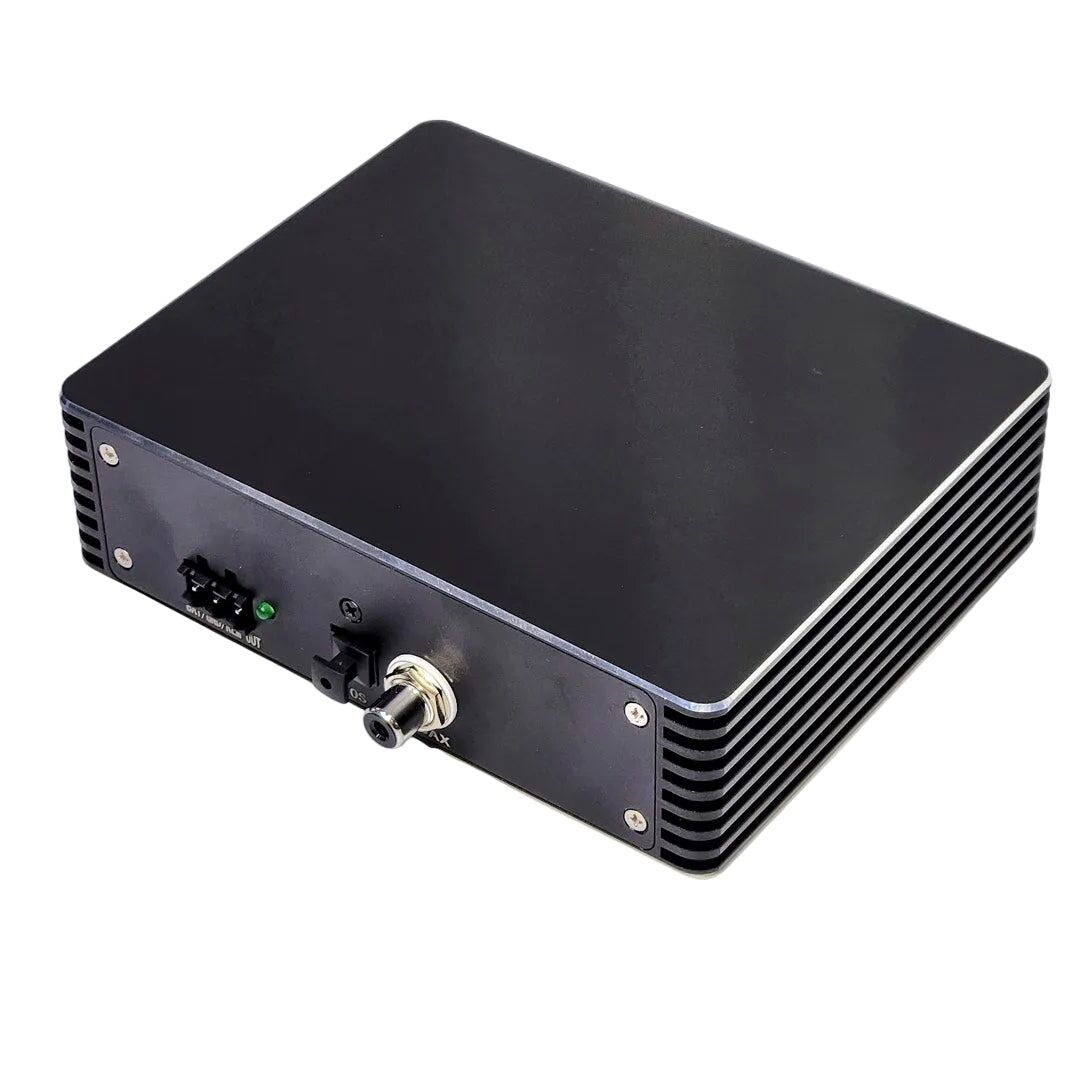

Eway Tech EW-BMMO-V620 - MOST25 To S/PDIF Audio Interface To Suit BMW E/F Gen with Harman Kardon

Overview

Optical MOST 25 Network converter to SPDIF stereo with Toslink

(Toshiba Link)

• This device is a fully functional alternative for the discontinued HELIX SDMI25 module.
• It converts the car's MOST25 network into a clean stereo signal including the factory system sounds, gongs, parking sensorts etc.
• The device was fully tested in the Rockdale workshop, please see the video in the description.

Video

Device video test: link

Technical data

Includes Gong and Parking Sensor Sounds

Applicable: MOST fibre optical

Adjust audio: original interface

Chips: OS81050, ADAU1452

Audio capacitor: Elna

Working voltage: DC 10V-18V

Low voltage protection: when voltage is lower than 12V

Output mode: Front and rear sound field SPDIF optical fibre/coaxial

Distortion: 0%

Compatibility

BMW with Optic Fibre MOST network (Harman Kardon)

suitable for models E/F Generation 2010-2019

Standard ENET wiring harness

not suitable for models with RAM (G generation)
