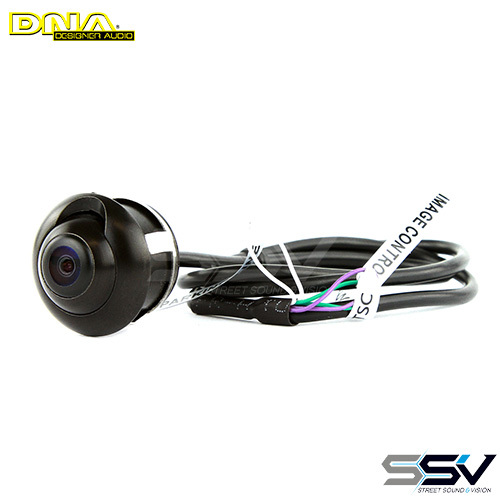

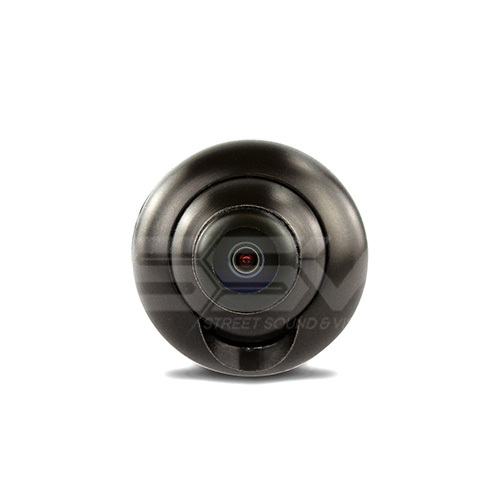

DNA RCP170 CMOS Reverse Camera Pivot Mount

CMOS Reverse Camera Flush Pivot Mount

This camera is ideal for OEM applications, where wiring is concealed for a neat and professional finish.

Model Strengths:
OEM Solution
Zinc Alloy Housing
Only Requires 22.5mm Hole
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines* (By default is set to show parking lines. Cut wire to turn off)
Mirror Image* (By default is set for rear camera installation. Cut wire to change image for front camera installation)

Features:
Includes selectable options: PAL/NTSC video format and reverse mirror imaging.

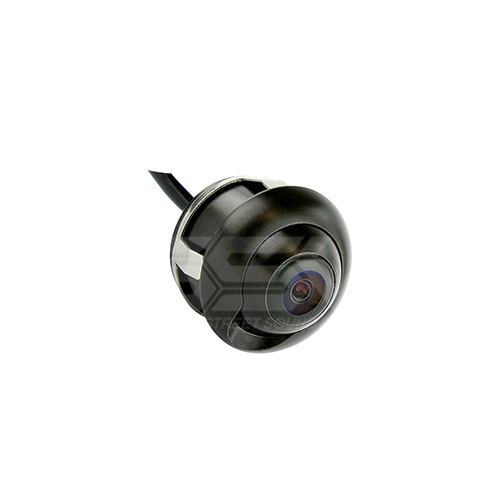

Camera also comes with a pivot mount and has a Waterproof IP68 rating.
To adjust the camera angle undo the locking ring at the rear using a pin spanner tool


Specifications:
Image Sensor: CMOS
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution : 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Camera Body Size: 25mm Deep x 28mm Diameter

Packaging: DNA Gift box
