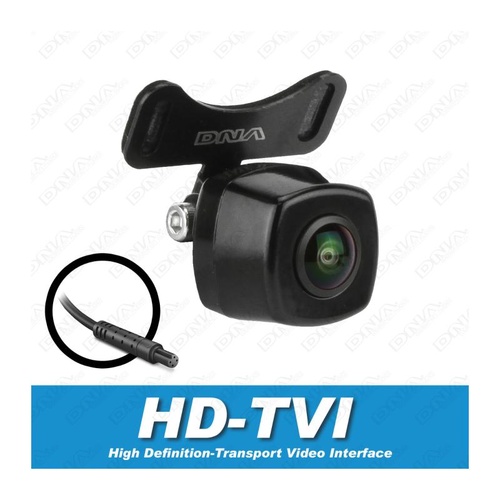

DNA RCL170 HD-TVI Reverse Camera Butterfly Mount

HD-TVI Reverse Camera Butterfly Mount

This butterfly camera is designed and built robust for 4WD, recreational and trade applications.

Model Strengths:
Heavy Duty Robust Design
Zinc Alloy Housing
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: 1080P/720P format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and has a Waterproof IP68 rating.
Ideal for 4WD and or trade vehicles that get knocked about where a tough camera is needed.

Selectable features:
1080p/720p format (Purple wire):  By default is set to 1080P.  (Cut wire to change to 720P)
Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)

Specifications:
Video System:                    HDTVI
Resolution:                         1280(H)*720(V)
Frame Rate:                       30fps
View Angle:                        170°
Working Voltage:               DC6V-15V±0.5V
Waterproof Rating:           IP68
Camera Body Size:            25mm W x 24mm H x 28mm D
Hole Size:                           8mm Diameter
Packaging:                         DNA Gift box with sleeve

Compatible with headunits compatible with HD-TVI format
