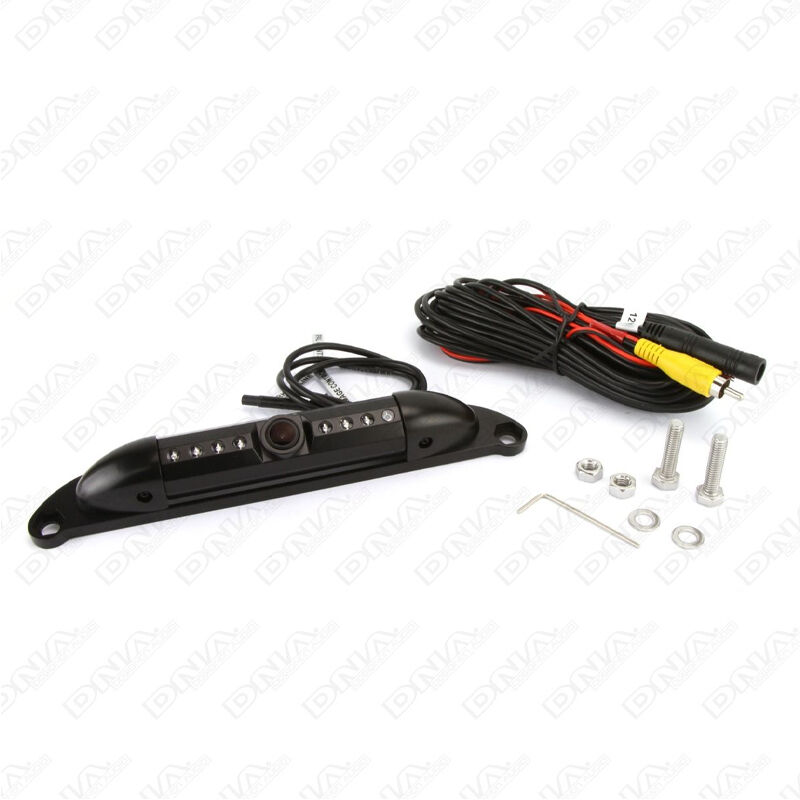

DNA RCC170 CMOS Reverse Cabin Camera

CMOS Reverse Cabin Camera

This compact unit is perfect using as an cabin camera for Utes.
Equipped with IR's for excellent night vision and a tiltable lens for precise angle adjustment, gives you crystal-clear footage whether you're reversing or keeping an eye on the cabin.
Built with a tough metal housing and rated waterproof.

Model Strengths:
Universal
Zinc Alloy Housing
PAL / NTSC Selectable*  (By default set to PAL.  To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes number plate mounting bracket and has a Waterproof IP68 rating.
Ideal for a wide range of vehicles wanting a safety solution. Rear or front mounting applications.

Selectable features:
PAL/NTSC format (Purple wire):  By default is set to PAL format.  (Cut wire to change to NTSC format)
Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)

Specifications:
Image Sensor:                   CMOS (PC1058K)
Video System:                    PAL or NTSC (Selectable)
Scanning area:                   4.88mm*3.67mm
Resolution:                         976(H)*592(V)
Horizontal Resolution :    700 TVL
Electronic Shutter:            1s-1/10000(S)
SNR:                                     =45.0dB
Min Illumination:               0.01Lux
Video Output:                    1.0V ±0.5Vp-p 75O
View Angle:                        170°
Working Voltage:               DC6V-15V ±0.5V
Consumption:                    100mA ± 10%
Waterproof Rating:           IP68
Camera Body Size:
Bracket Size:
Hole Range:
