CMOS Reverse Camera Kit To Suit Toyota Lancruiser 70 Series (2024 Facelift Model)

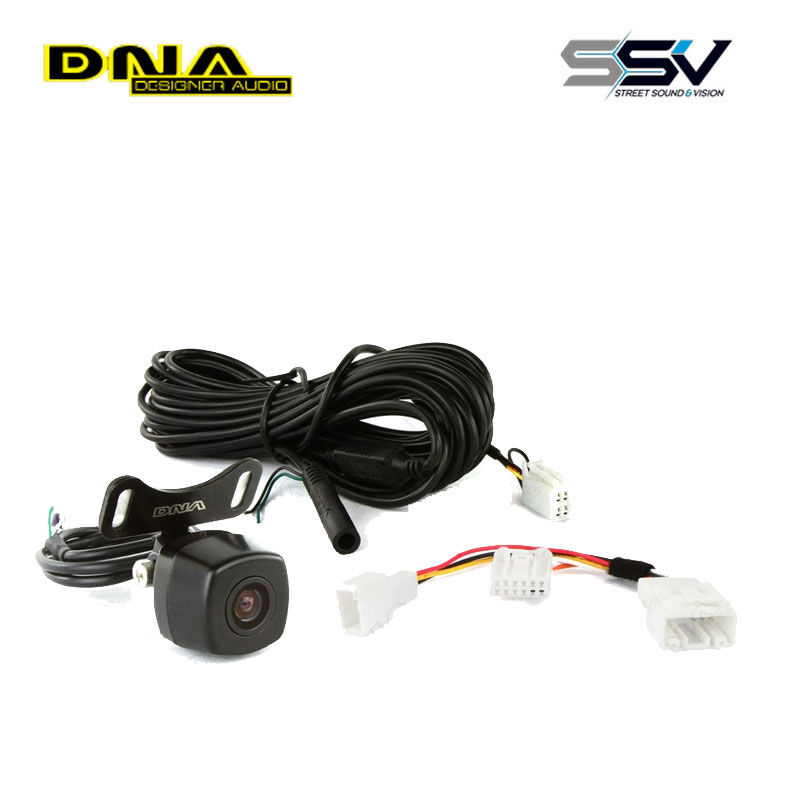

CMOS Reverse Camera With Butterfly Mount And Harness Kit To Suit Toyota Lancruiser 70 Series (2024  Facelift Model) Vehicles.

Suits:
Toyota Landcruiser 70 Series Late 2023 Onwards.
Use main harness and connect to the camera extension cable.
Plugs into the driver side footwell.

Installation:
This reverse camera and harness kit is designed for plug and play DIY installation in Toyota Landcruiser 70 Series vehicles without the need of cutting or soldering any wires.
It allows easy installation and integration of a reverse camera to the OEM factory Toyota Landcruiser 70 Series screen.
The camera is then simply mounted in the factory location or under the tray.
Refer to included instruction manual for installation instructions.

Camera Strengths:
Heavy Duty Robust Design
Zinc Alloy Housing
PAL / NTSC Selectable*  (By default set to PAL.  To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*
Plug and play DIY installation with harness

Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and has a Waterproof IP68 rating.
Ideal for 4WD and or trade vehicles that get knocked about where a tough camera is needed.
Plug and play DIY installation with harness

Selectable features:
PAL/NTSC format (Purple wire):  By default is set to NTSC format for Toyota OEM head units.
Image Control (Green wire):  By default is set for rear camera installation.  (Cut wire to change image for front camera installation)
Parking Line (White wire):  By default is set to show parking lines.  (Cut wire to turn off)

Specifications:
Image Sensor:                   CMOS (PC1058K)
Video System:                    PAL or NTSC (Selectable)
Scanning area:                   4.88mm*3.67mm
Resolution:                         976(H)*592(V)
Horizontal Resolution :       700 TVL
Electronic Shutter:             1s-1/10000(S)
SNR:                                   =45.0dB
Min Illumination:                 0.01Lux
Video Output:                    1.0V±0.5Vp-p 75O
View Angle:                        170°
Working Voltage:               DC6V-15V±0.5V
Consumption:                    100mA±10%
Waterproof Rating:           IP68
Camera Body Size:            28mm W x 22mm H x 22mm D
Butterfly Base Size:           44mm L x 18mm W
Packaging:                          DNA Gift box with sleeve
