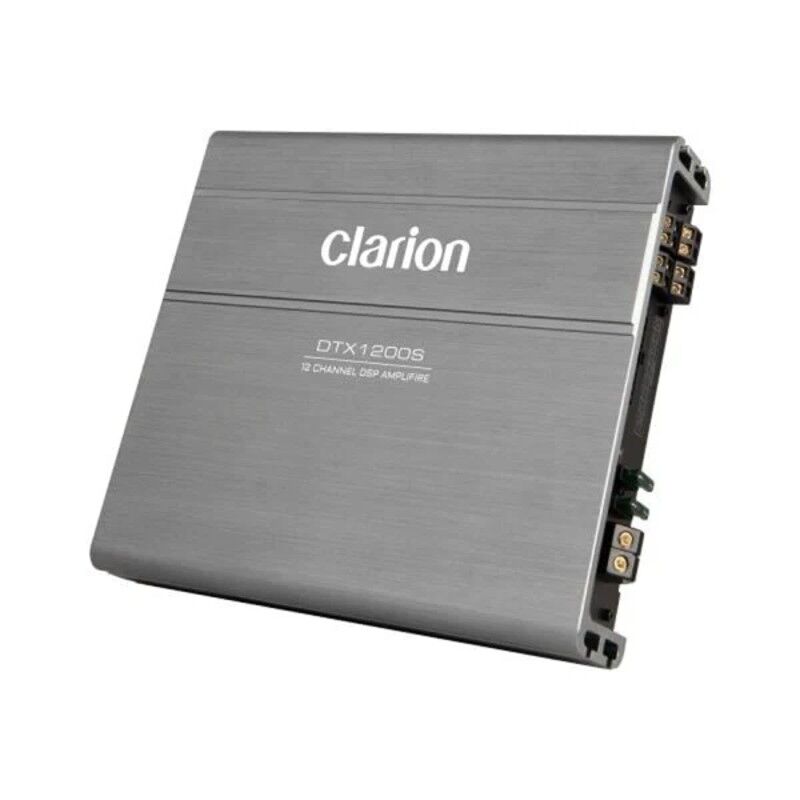

Clarion DTX1200S 12-Channel 1360W Amplifier with 12-Channel DSP

The Clarion DTX1200S is the pinnacle of Clarion's DSP amplifier range, combining 12-channel digital signal processing with hybrid Class A/B and Class D amplification to deliver 1360W maximum power across twelve independently controllable channels. Engineered for high-end custom installations requiring both sonic refinement and substantial output, this unit serves as the complete foundation for complex active systems including tri-amped front stages, dedicated center channels, rear fill, and powerful subwoofer arrays. The hybrid amplifier architecture uses Class A/B topology for channels 1-8 (70W peak each) to maintain sonic purity in midrange and high frequencies, while channels 9-12 leverage efficient Class D amplification delivering 200W peak each—specifically designed to drive subwoofers or high-demand midbass drivers. With 12 high-level inputs, 2 RCA inputs, plus optical and coaxial digital connectivity, the DTX1200S integrates seamlessly with any source. The 24 total outputs (12 RCA + 12 high-level) and comprehensive DSP featuring 31-band parametric EQ per channel, selectable crossover topologies, and 20,000ms time alignment provide the precision control demanded by competition-level installations and discerning audiophiles.

Key Specifications

• 12-channel DSP processor with 12-channel hybrid amplification (Class A/B + Class D)
• Maximum power output: 1360W (CH1-8: 70W peak each, CH9-12: 200W peak each)
• 14 input channels: 12 high-level (26-32Vpp max) + 2 RCA (7Vpp max) + optical/coaxial digital
• 24 total outputs: 12 RCA (7Vpp max) + 12 high-level (34-52Vpp max)
• 31-band parametric EQ per channel: 20Hz-20kHz, Q value 0.404-28.852, ±12dB gain, 0.1dB resolution
• Independent high-pass/low-pass filters per channel: 20Hz-20kHz, 6-48dB/octave slopes
• Output delay: 0-20,000ms (692cm/273in) for precise time alignment
• Filter types: Linkwitz-Riley, Butterworth, Bessel
• Signal-to-noise ratio >100dB, THD 0.05%, dynamic range >100dB
• Operating voltage: DC 9-16V
• Dimensions: 251mm (L) × 227mm (W) × 53mm (H)
• Weight: 3.54kg (packaged: 4.00kg)
