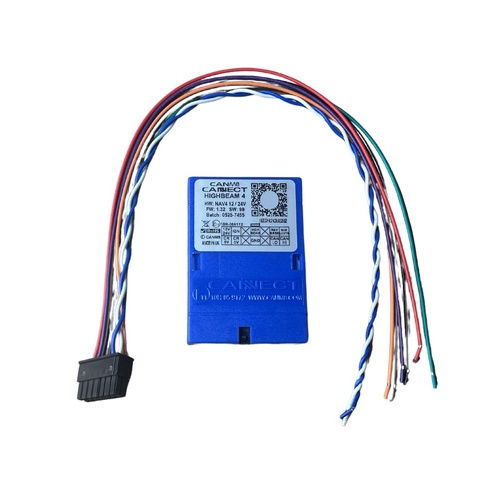

CANM8 C8NECTHIGHBEAM-4 CANNECT High Beam, Park Light, Reverse & Ignition Signal Interface

Overview

The CANM8 C8NECTHIGHBEAM-4 is a CAN-Bus signal interface.

High Beam / Park Light / Reverse/ Ignition Signal Interface.

Adding a lightbar or set of driving lights to a modern car has never been easier.

Modern vehicles have all the features you need, just sometimes the lighting output at high beam doesn't cut it. The CANM8 CANNECT HIGHBEAM-4 is an ideal solution for vehicles which require the installation of additional driving lights (via a relay) which are switched on when the vehicle high beam is active.

Key Features

• This is not a universal interface. It is ONLY compatible with the vehicles listed in the specifications.
• The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
• Solid Red: CAN Data received but vehicle not yet identified.
• Solid Green: CAN Data received and vehicle type recognised.
• RED: Connect via a 5A fuse to a PERMANENT 12v supply.
• BLACK: Connect to a good chassis GROUND point.
• WHITE: CAN HI Connection : Vehicle CAN HI wire.
• BLUE: CAN LO Connection : Vehicle CAN LO wire.
• BROWN: High Beam Output : 12v (1A max) when the high beam is active.
• GREEN: Reverse Output : 12v (1A max) when reverse gear is selected.
• ORANGE: Park Light Output : 12v (1A max) when parkers are switched on.

What's Included

• 1x Vehicle Interface
• 1x Bare Wire Harness
• Vehicle Specific Instructions via the CANM8 CANNECT App

Specifications

Warranty

Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.
