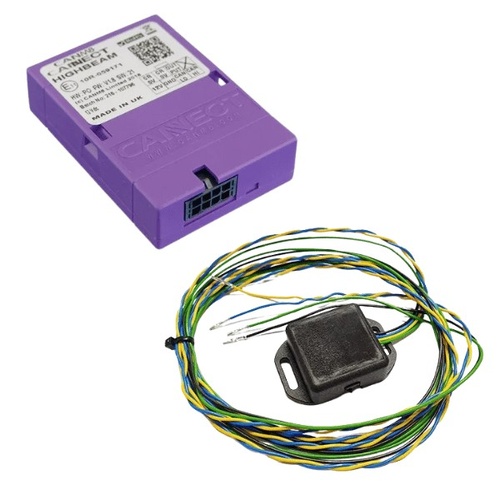

CANM8 C8NECT-HBC CANNECT High Beam Signal Interface with Contactless Reader

CANM8 C8NECT-HBC CANNECT High Beam Signal Interface with Contactless Reader

SKU:C8NECT-HBC

$429.00


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $9.95
Shipping with Signature

High Beam Signal Interface & Contactless Reader 5V. Adding a lightbar or set of driving lights to a modern car has never been easier.

Overview

The CANM8 C8NECT-HBC is a CAN-Bus signal interface.

High Beam Signal Interface & Contactless Reader 5V.

Adding a lightbar or set of driving lights to a modern car has never been easier.

Modern vehicles have all the features you need, just sometimes the lighting output at high beam doesn't cut it. The CANM8 CANNECT HIGHBEAM is an ideal solution for vehicles which require the installation of additional driving lights (via a relay) which are switched on when the vehicle high beam is active.

Key Features

  • By installing into the vehicles digital CAN network, the CANNECT Highbeam interface converts the signal to a low ampere 12v output for your driving light circuit.
  • This is not a universal interface. It is ONLY compatible with the vehicles listed in the specifications.
  • The Contact-less Reader option allows the CAN Bus interface to read vehicle CAN Bus data without any actual metal to metal connection between the interface and the vehicle CAN Bus.
  • The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.
  • Solid Red: CAN Data received but vehicle not yet identified.
  • Solid Green: CAN Data received and vehicle type recognised.
  • High Beam Output : 12v (1A max) when the high beam is active.

What's Included

  • 1x Vehicle Interface
  • 1x Bare Wire Harness
  • 1x Contactless reader C8CONRED5
  • Vehicle Specific Instructions

Specifications

Brand CANM8
Part Number C8NECT-HBC
Product Type CAN-Bus Signal Interface
Module Outputs 12v Trigger when high beam is enabled
Vehicle Notes In some vehicles the Auto Dimming Function may not be retained. Before purchasing this item from a retailer confirm the SW# is applicable to the vehicles listed in the specifications: - 300 Series Landcruiser - Interface must be SW:89 or above - Late 2021-Up Subaru Outback - Interface must be SW:90
Technical Note In some cases the HIGHBEAM output can be activated with the head lights turned off and the stalk moved to the high beam position. In these cases a switch will need to be installed to cut the power to the HIGHBEAM interface or find a power source that is only active when the lights are in the ON posi
Compatibility Some Vehicles Auto Headlight Dimming May Not Be Retained; Interface is NOT designed to direct drive lightbars or driving lights. You still need to install a wiring harness for your lights (NOT INCLUDED)

Warranty

Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.

(C8NECT-HBC)

Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.
