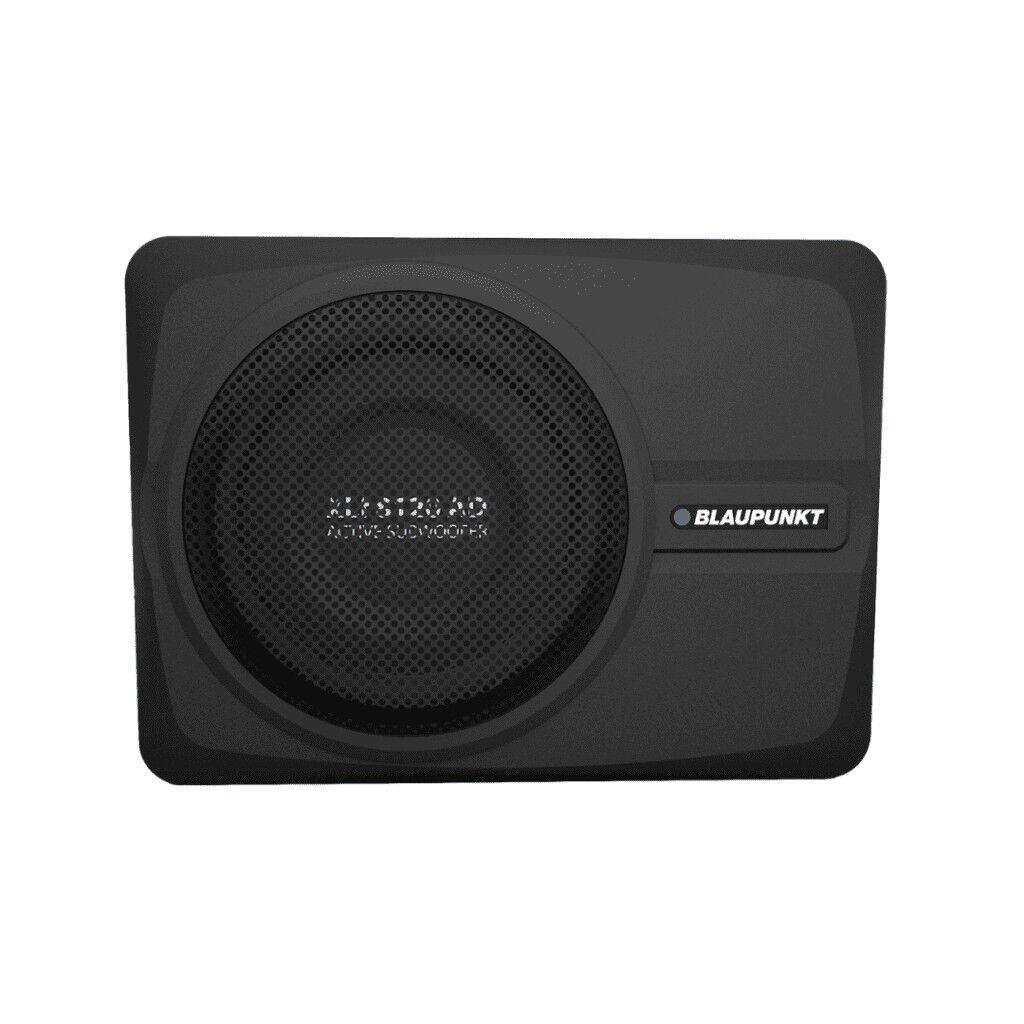

Blaupunkt XLF8120AD 8" Active Subwoofer with DSP & 4 Channel Amplifier

Blaupunkt XLF8120AD 8" Active Subwoofer with DSP & 4 Channel Amplifier

SKU:XLF8120AD

$499.00


Sold Out
Notify Me
Add To Compare

Calculate Shipping

Blaupunkt XLf 8120 AD 8" active subwoofer, 73mm tall, with built-in DSP (15-band EQ) and 4-channel amplifier (4 x 35W RMS @ 4 ohms). Bluetooth, PC and app tuning.

Overview

The Blaupunkt XLf 8120 AD is a compact 73mm tall active subwoofer with an 8" driver, a Class AB amplifier and a built-in DSP with a 15-band equaliser and phase and time alignment, tuned through PC software or the mobile app.

It also drives four speaker channels at 4 x 35W RMS (4 ohms) / 4 x 50W RMS (2 ohms), with RCA and high-level inputs and outputs.

Key Features

  • 8" active subwoofer, 73mm tall
  • Built-in DSP, 15-band EQ, phase and time alignment
  • 4-channel amplifier: 4 x 35W RMS @ 4 ohms
  • Built-in Bluetooth
  • PC tuner software and mobile app
  • 300W max output

What's Included

  • Active subwoofer

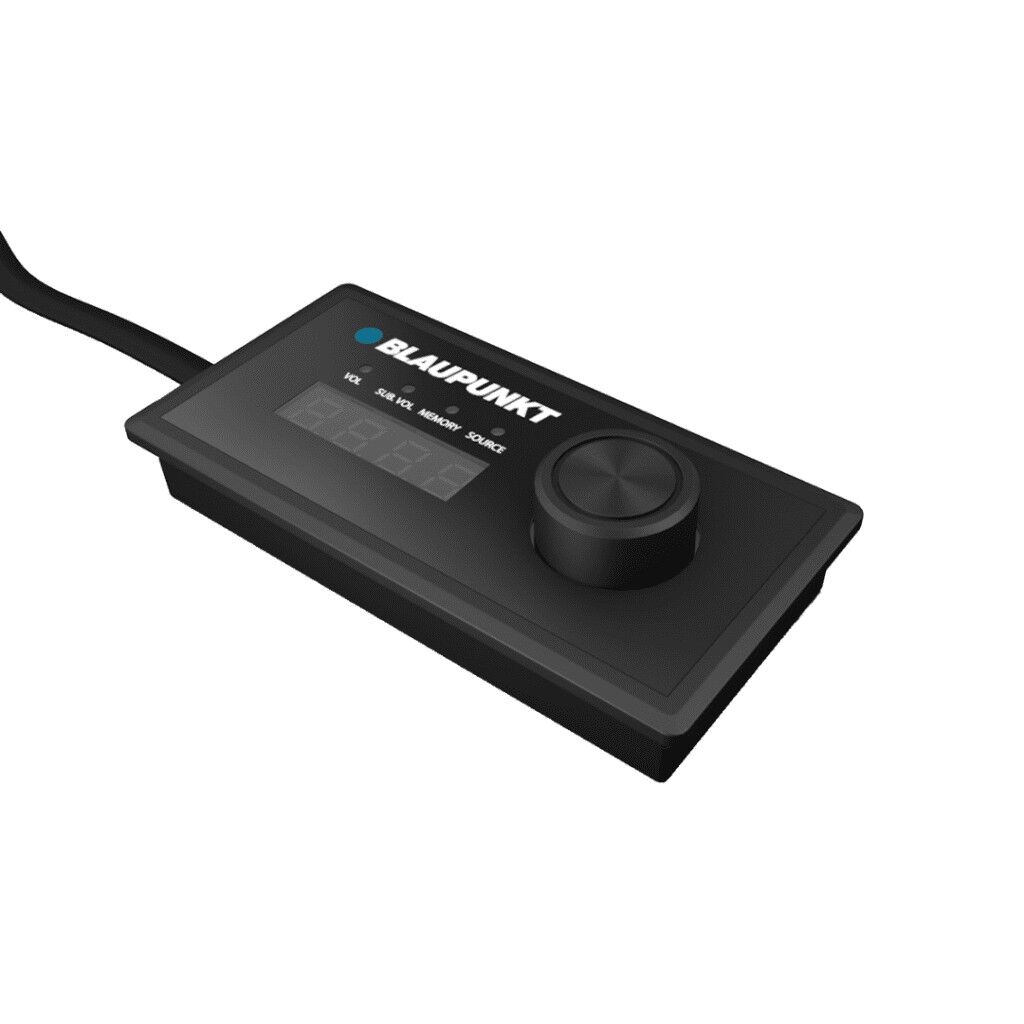

  • 3.0m wired remote
  • 4 x 4x20mm Parker screws
  • 8 x 3x6mm M screws
  • 4 x mounting brackets
  • Power cable
  • High-level input cable
  • USB cable

(XLF8120AD)

  • 8" active subwoofer, 73mm tall
  • Built-in DSP, 15-band EQ, phase and time alignment
  • 4-channel amplifier: 4 x 35W RMS @ 4 ohms
  • Built-in Bluetooth
  • PC tuner software and mobile app
  • 300W max output

Specifications

Brand Blaupunkt
Product Type Active subwoofer with DSP amplifier
Speaker Size 8"
Amplifier Class AB
Max Output Power 300W
DSP Channel Power 4 x 35W RMS @ 4 ohms / 4 x 50W RMS @ 2 ohms
DSP 24-bit, 48kHz, 15-band EQ, phase & time alignment
Frequency Response 20Hz - 20kHz
THD <0.005%

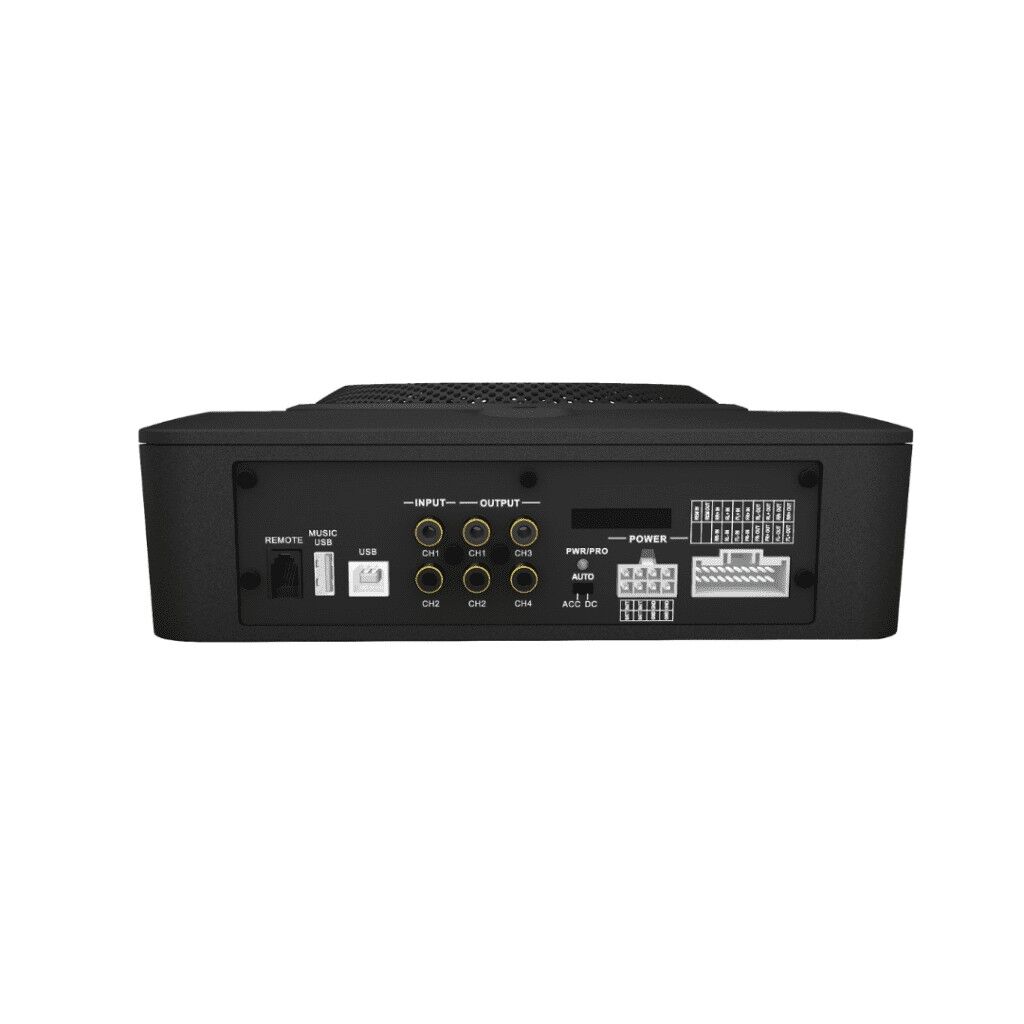

Inputs 2 x RCA/Aux, 4 x high-level, remote-in, USB
Outputs 4 x RCA, 4 x high-level speaker, remote-out
Bluetooth Built-in
Operating Voltage 10 - 14.4V
Dimensions 330 x 240 x 73mm
Weight 4.1kg
