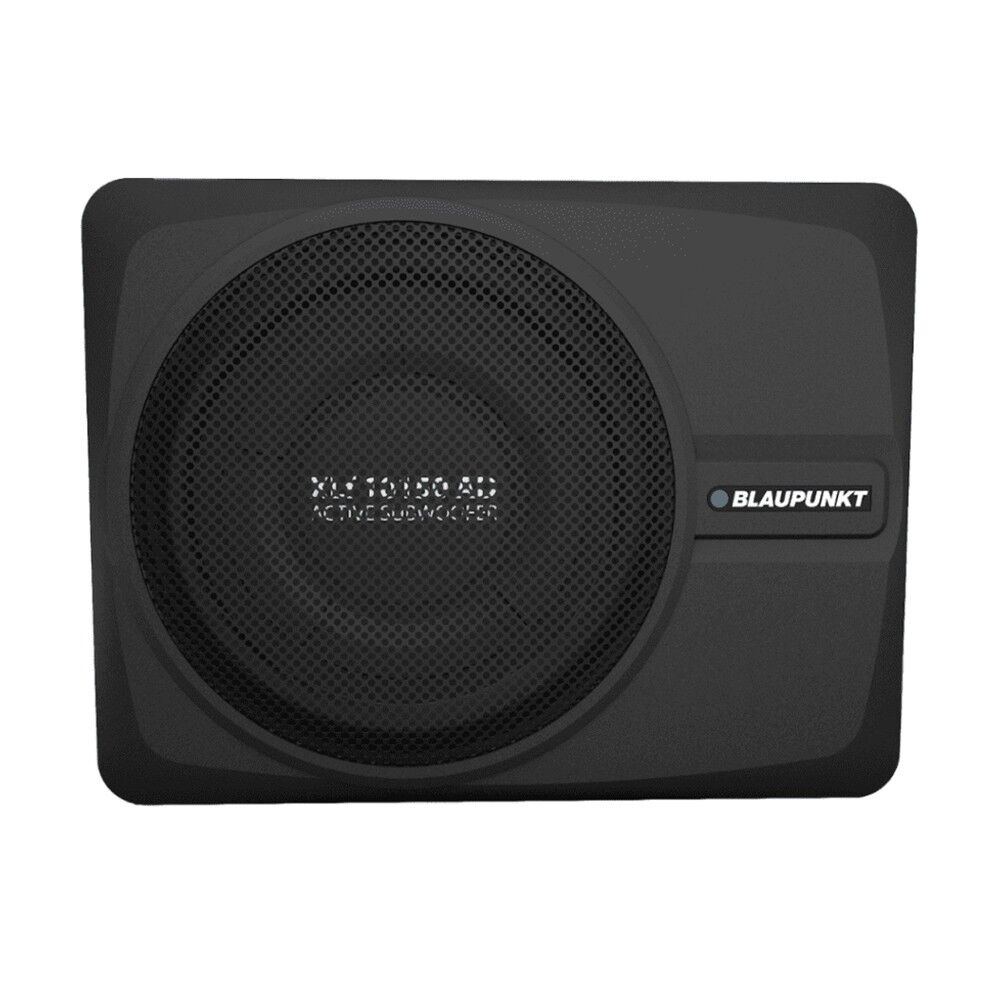

Blaupunkt XLF10150AD 10" Active Subwoofer with DSP & 4 Channel Amplifier

Blaupunkt XLF10150AD 10" Active Subwoofer with DSP & 4 Channel Amplifier

SKU:XLF10150AD

$599.00


Sold Out
Notify Me
Add To Compare

Calculate Shipping

Blaupunkt XLf 10150 AD 10" active subwoofer, 73mm tall, with built-in DSP (31-band EQ) and 4-channel amplifier (4 x 35W RMS @ 4 ohms). Bluetooth, PC and app tuning.

Overview

The Blaupunkt XLf 10150 AD is a compact 73mm tall active subwoofer with a 10" driver, a Class AB amplifier and a built-in 24-bit DSP. The DSP adds a 31-band equaliser with phase and time alignment, tuned through PC software or the mobile app.

It also drives four speaker channels at 4 x 35W RMS (4 ohms) / 4 x 50W RMS (2 ohms), with RCA and high-level inputs and outputs.

Key Features

  • 10" active subwoofer, 73mm tall
  • Built-in 24-bit DSP, 31-band EQ, phase and time alignment
  • 4-channel amplifier: 4 x 35W RMS @ 4 ohms
  • Built-in Bluetooth
  • PC tuner software and mobile app
  • 2 RCA / 4 high-level inputs, 6 RCA / 4 high-level outputs

What's Included

  • Active subwoofer

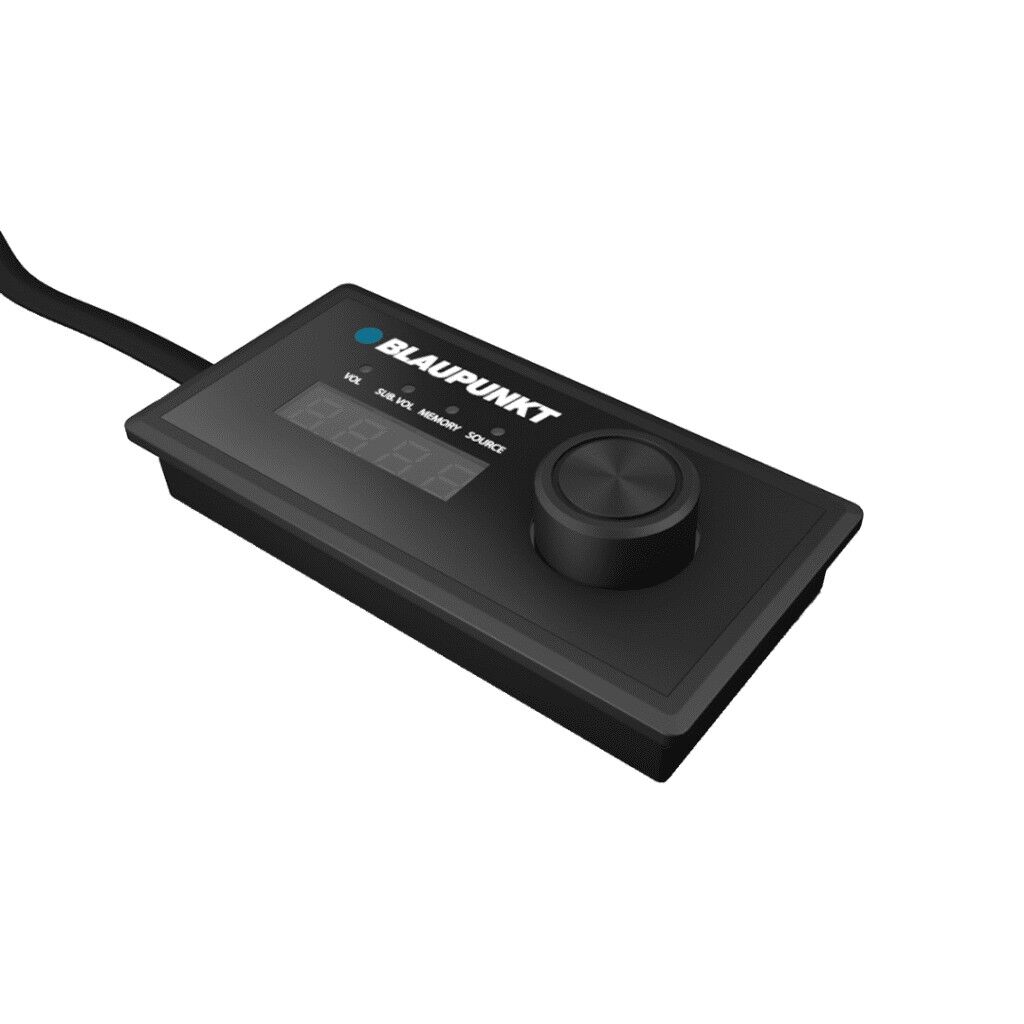

  • 3.0m wired remote
  • 4 x 4x20mm tapping screws
  • 8 x 4x5mm machine screws
  • 4 x mounting brackets
  • Power cable
  • High-level input cable
  • USB cable (1.5m)

(XLF10150AD)

  • 10" active subwoofer, 73mm tall
  • Built-in 24-bit DSP, 31-band EQ, phase and time alignment
  • 4-channel amplifier: 4 x 35W RMS @ 4 ohms
  • Built-in Bluetooth
  • PC tuner software and mobile app
  • 2 RCA / 4 high-level inputs, 6 RCA / 4 high-level outputs

Specifications

Brand Blaupunkt
Product Type Active subwoofer with DSP amplifier
Speaker Size 10"
Amplifier Class AB
Max Output Power 380W
DSP Channel Power 4 x 35W RMS @ 4 ohms / 4 x 50W RMS @ 2 ohms
DSP 24-bit, 48kHz, 31-band EQ, phase & time alignment
Frequency Response 20Hz - 20kHz
THD <0.005%

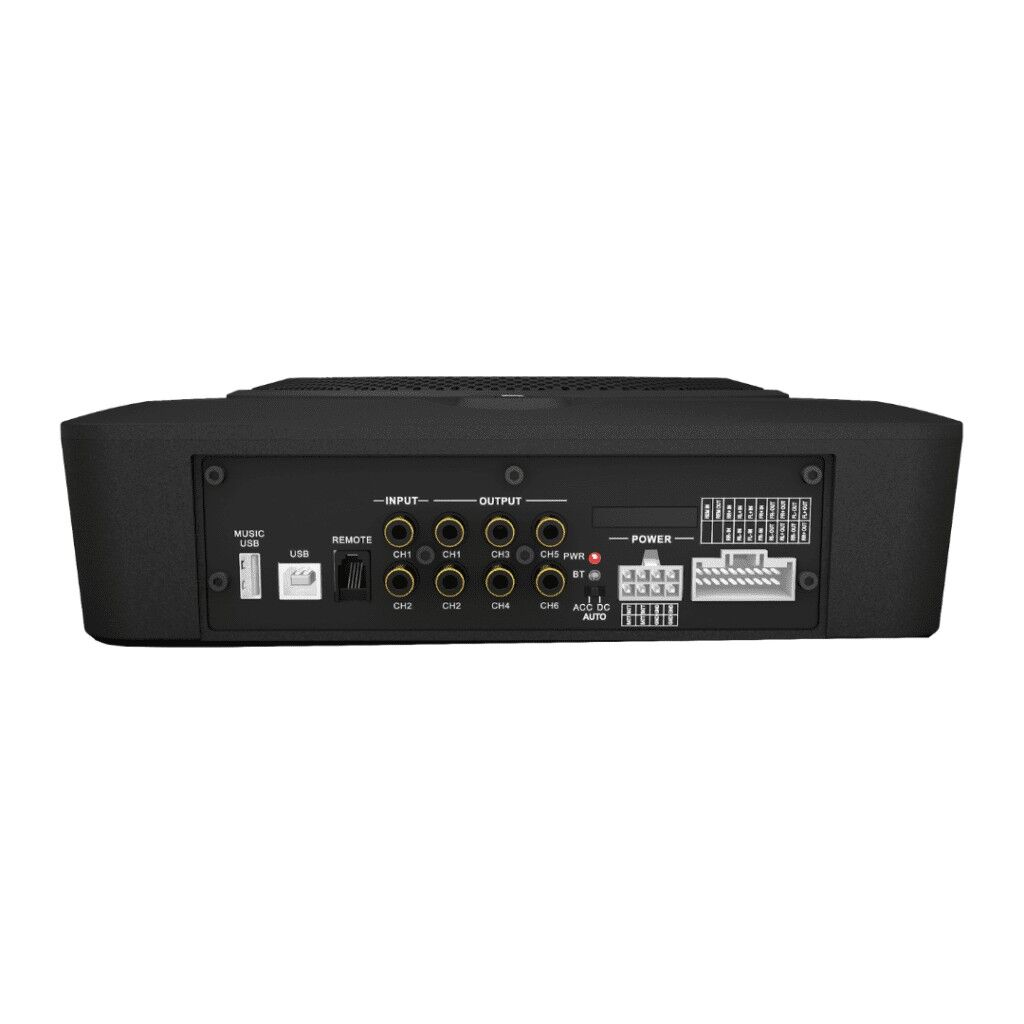

Inputs 2 x RCA/Aux, 4 x high-level, remote-in, USB
Outputs 6 x RCA, 4 x high-level speaker, remote-out
Bluetooth Built-in
Operating Voltage 10 - 14.4V
Dimensions 347 x 262 x 73mm
Weight 4.5kg
