BlackVue CM100 LTE External 4G LTE Module

Calculate Shipping

Description
Specifications

Product Features

- New CM100LGTE Model
- Works as 4G modem for your data SIM Card (Telstra/Vodafone)
- Plugs into your DR750X or Dr900X Dash Cam
- Easy Installation (powered by camera)
- AU Version
- BYO Nano SIM Card
- 12 Month Warranty

BLACKVUE CMG100LTE

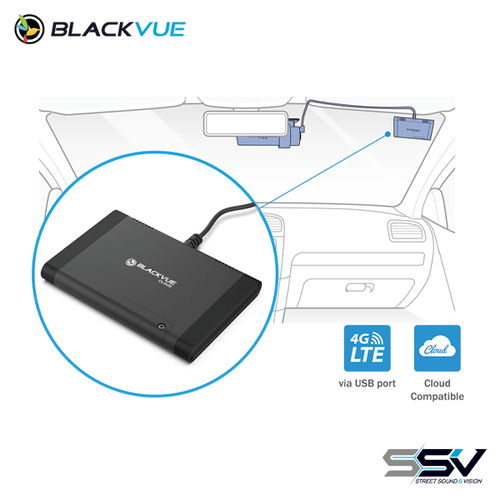

LTE Connectivity Module With DR900X and DR750X, you can connect an LTE Connectivity Module (CM100GLTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about the CM100GLTE running out of power like you might with a self-powered router.

(CM100GLTE)

Model Code	CM100GLTE
Color/Size/Weight	Black / Length 90 mm x Width 60 mm x Height 10 mm / 74g
Cable Length	3 Metres
Input Charging Power	Quectel EC25-J CM100LTE [AU]
LTE Supported Band	AU : B1/B2/B3/B4/B5/B7/B8/B28
LTE Features	Support up to Non-CA CAT. 4 FDD and TDD LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL) LTE-TDD
Transmitting Power	Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands Class 3 : 24dBm +1/-3dBM @ WCDMA Bands
SIM Card	Support Nano SIM Card / 3.0V
Connector Type	Micro USB Type-B Connector with Harness Cable
USB Interface	Compliant with USB 2.0 specification(Slave Only), Reach up to 480Mbps for data transfer rate
Antenna Type	Fixed / Intenna (Main, Diversity)
Power Supply	USB Harness Cable : 5.0V / 1A Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A
Power Consumption	Idle Mode : 20mA / Traffic Mode : 570mA @ Max. Power (23dBm)
Temperature Range	Operation Temperature Range : -35°C ~ +75°C Storage Temperature Range : -40°C ~ +85°C
Certifications	PTCRB, FCC, ISED, RCM, TELEC, WEEE, RoHS
Warranty	12 Months in Australia
