Beat Sonic EX-DSP Encore X DSP Amplifier
SKU:EX-DSP
Overview

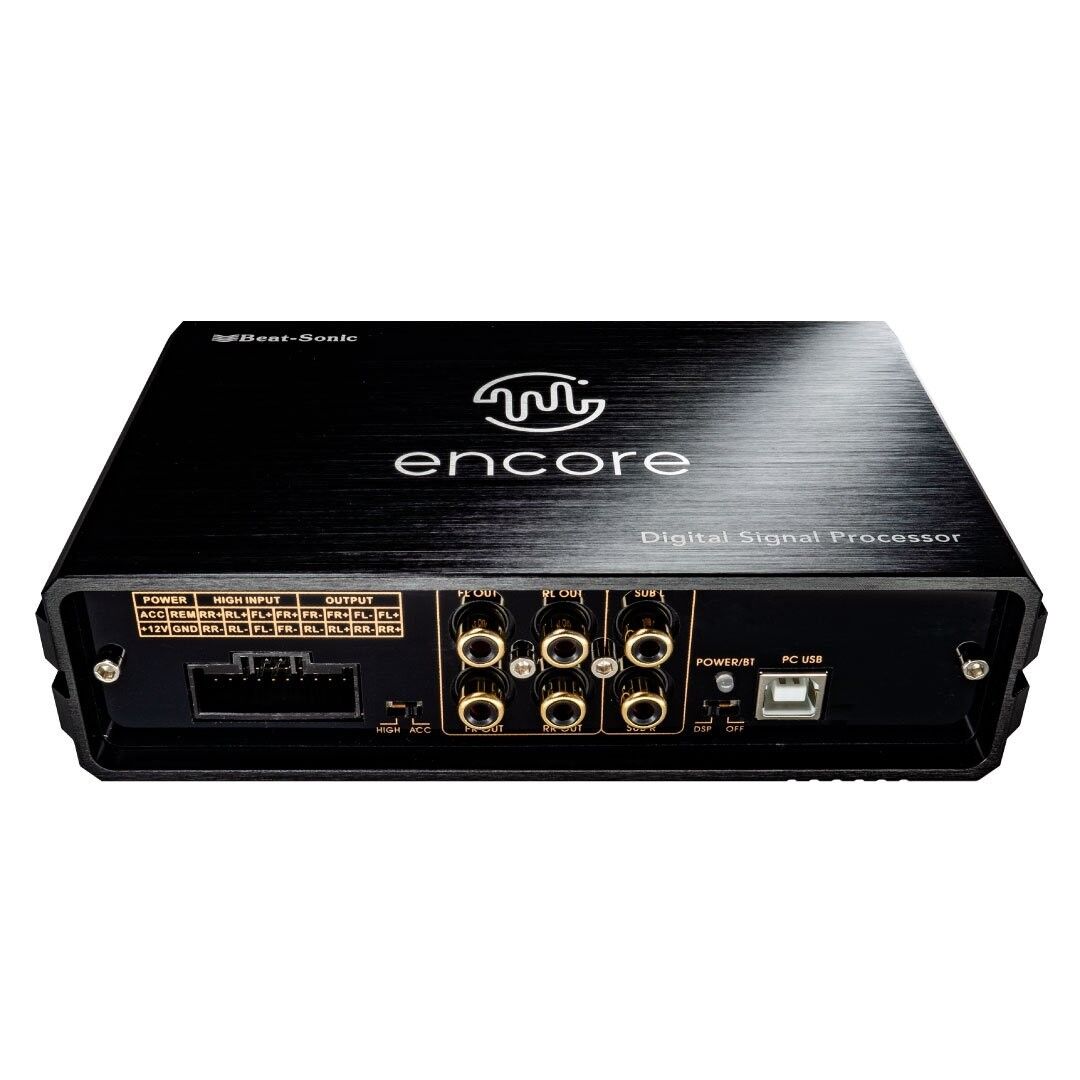

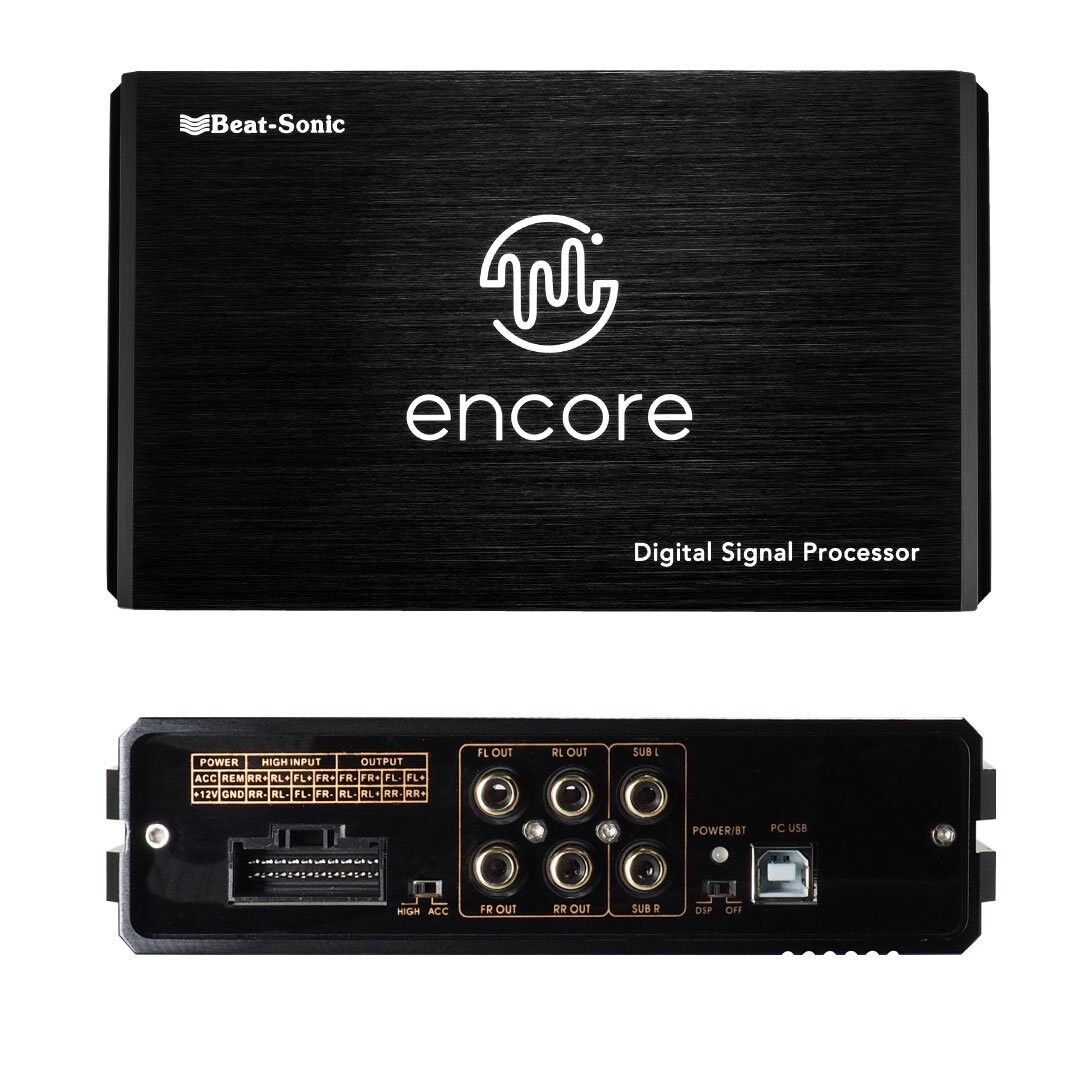

The Beat Sonic EX-DSP is a DSP amplifier.
Upgrade your car audio experience with the Encore X Car Audio DSP Amplifier from Beat-Sonic. Featuring built-in DSP (Digital Signal Processor) technology together with built-in 4ch amplifier.
The Encore X also features 6 x RCA outputs with 2 dedicated subwoofer pre-outs for system expansion, including powered subwoofer integration.
Please note: This amplifier does not come with a harness and requires the addition of a vehicle specific T-harness (part#'s EX-FD3/ EX-N1 / EX-T1/ EX-T3).
Key Features
- Superior Sound Quality: Extracts the best sound from the factory radio and speakers using class AB amplifier and advanced DSP technology.
- Plug & Play Installation: No modifications and easy to install in less than an hour.
- Enhanced Power Output: More power than the factory radio.
- System Expansion: Dedicated subwoofer pre-outs and remote amp turn-on for adding a powered/active subwoofer.
- Ultra-compact amplifier seamlessly installs to the factory stereo system.
- Significantly improves the sound quality with more clarity and powerful sound output between low, mid, and high ranges.
- Experience higher quality sound while keeping factory speakers and head unit.
- Future upgrade ready with RCA audio output for additional aftermarket amplifiers or underseat subwoofers.
What's Included
- 1 x Beat Sonic EX-DSP DSP amplifier
Specifications
| Brand | Beat Sonic |
|---|---|
| Part Number | EX-DSP |
| Product Type | DSP Amplifier |
| Class AB Amplifier | 4 Channels |
| Power Output | 45W x 4CH (4Ohm) |
| Speaker Impedance | 4 Ohm |
| Audio Inputs | 4 x Speaker High Level |
| Audio Outputs | 4 x Speaker Output & 6 x RCA (2.2V P-P) |
| DSP Resolution | 24bit |
| Sampling Rate | 48kHz |
| Crossover | Bypass, Bandpass, Lowpass, High-pass |
| Frequency Range | 20 - 22kHz (31 bands) |
| Thd | 0.01% |
| Operating Voltage | DC 10V - 15V |
| Quiescent Current | 350mA |
| Fuse | 15A |
| Dimensions | 170mm (W) x 103mm (D) x 45mm (H) |
| Weight | 625gm Excluding the T Harness |
Warranty
Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.
(EX-DSP)
Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.
- Superior Sound Quality: Extracts the best sound from the factory radio and speakers using class AB amplifier and advanced DSP technology.
- Plug & Play Installation: No modifications and easy to install in less than an hour.
- Enhanced Power Output: More power than the factory radio.
- System Expansion: Dedicated subwoofer pre-outs and remote amp turn-on for adding a powered/active subwoofer.
- Ultra-compact amplifier seamlessly installs to the factory stereo system.
- Significantly improves the sound quality with more clarity and powerful sound output between low, mid, and high ranges.
- Experience higher quality sound while keeping factory speakers and head unit.
- Future upgrade ready with RCA audio output for additional aftermarket amplifiers or underseat subwoofers.
Specifications
| Brand | Beat Sonic |
|---|---|
| Part Number | EX-DSP |
| Product Type | DSP Amplifier |
| Class AB Amplifier | 4 Channels |
| Power Output | 45W x 4CH (4Ohm) |
| Speaker Impedance | 4 Ohm |
| Audio Inputs | 4 x Speaker High Level |
| Audio Outputs | 4 x Speaker Output & 6 x RCA (2.2V P-P) |
| DSP Resolution | 24bit |
| Sampling Rate | 48kHz |
| Crossover | Bypass, Bandpass, Lowpass, High-pass |
| Frequency Range | 20 - 22kHz (31 bands) |
| Thd | 0.01% |
| Operating Voltage | DC 10V - 15V |
| Quiescent Current | 350mA |
| Fuse | 15A |
| Dimensions | 170mm (W) x 103mm (D) x 45mm (H) |
| Weight | 625gm Excluding the T Harness |
