Axxess AXUSB-RAM1 USB/AUX/HDMI Replacement Panel (3ft) To Suit RAM 2015-2021

Overview

The Axxess AXUSB-RAM1 is an USB/AUX/HDMI replacement panel for the RAM 2015-2021.

Axxess AXUSB-CH1 HDMI, Dual USB and 3.5mm Rectangle Panel Jack and 3-foot Extension Cable.

Key Features

• Replaces exiting Jeep Hub when replacing the factory radio to retain jacks to the new radio

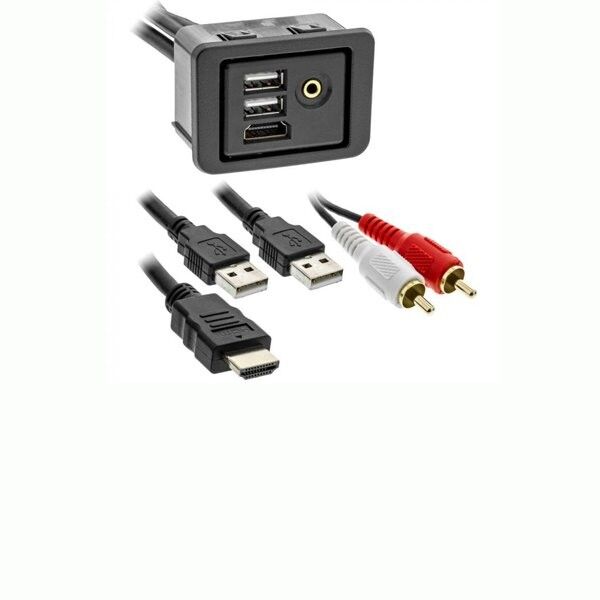

• HDMI, (2) USB's and 3.5mm Auxiliary mount jack with extension cable
• Can be used with any radio that supports HDMI, USB and 3.5mm inputs
• 3.5 mm jack is a 2 ring type for audio connection
• Enables you to conveniently mount the USB on the dash and make connections to the rear of the radio
• Works with USB 2.0 storage devices
• Up to 12Mbps transfer rate
• Hot pluggable
• 3-foot cable

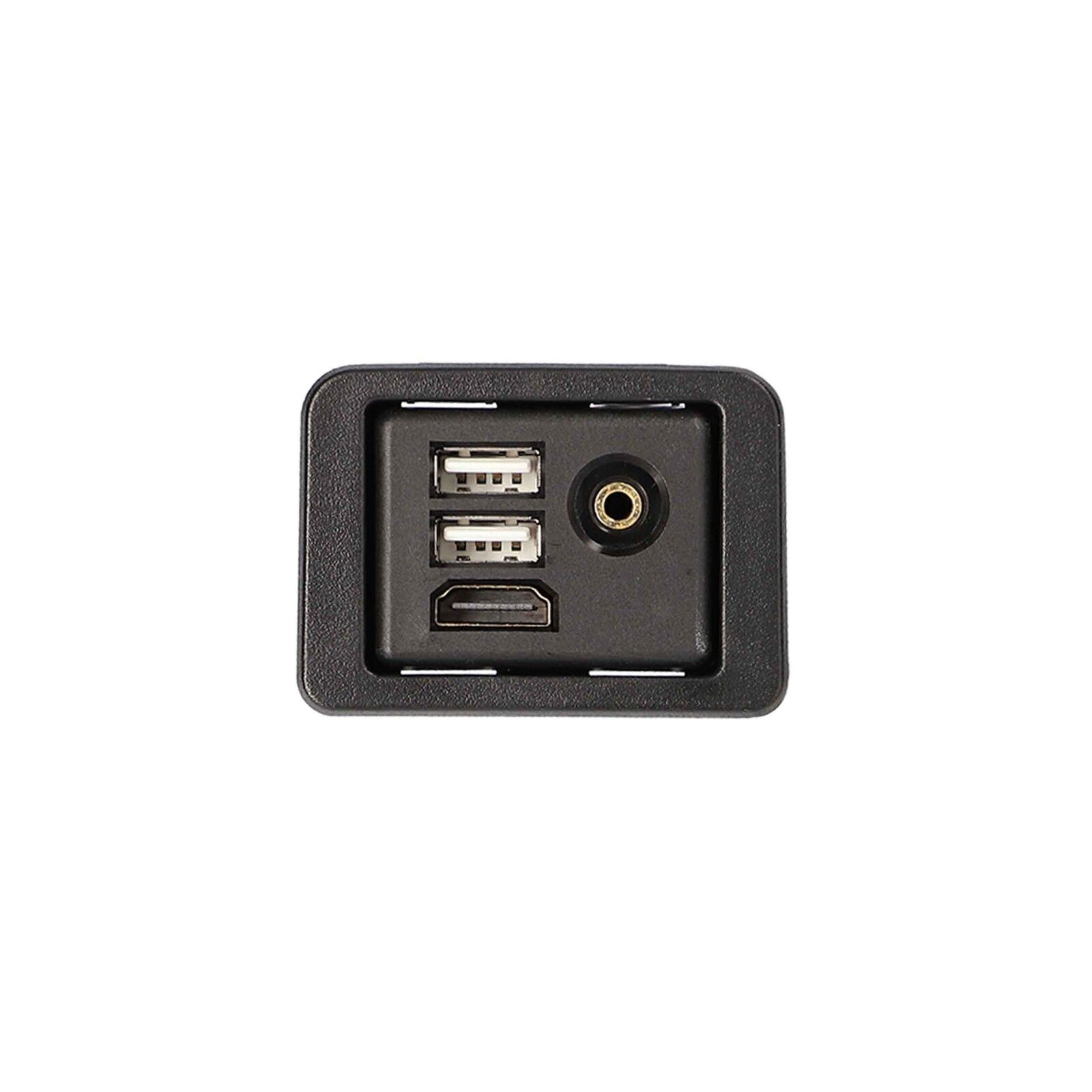

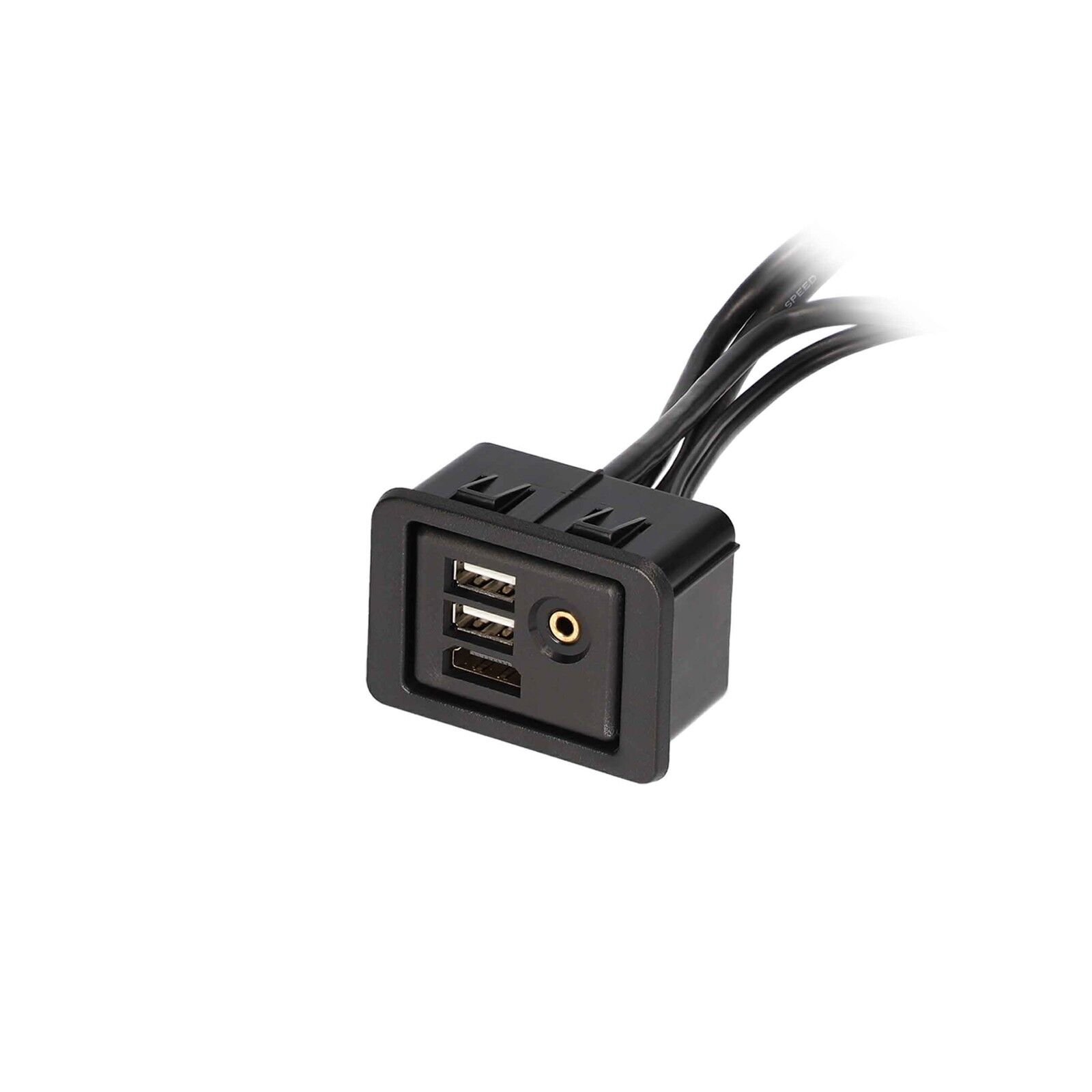

• Jack Panel Overall: 1-1/4" (H) x 1-11/16" (W) x 2-1/2" (D)
• Jack Panel Cutout: 1-1/16" (H) x 1-1/2" (W) x 2-1/2" (D)
• Trim Cutout: 1-9/16" (H) x 2-3/16" (W)

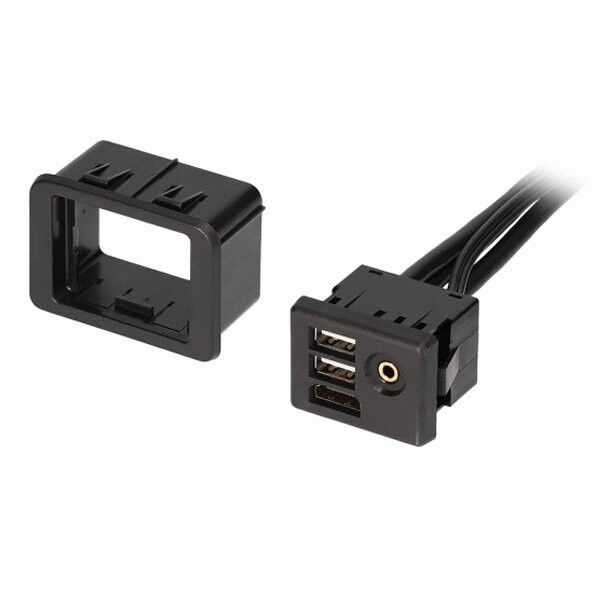

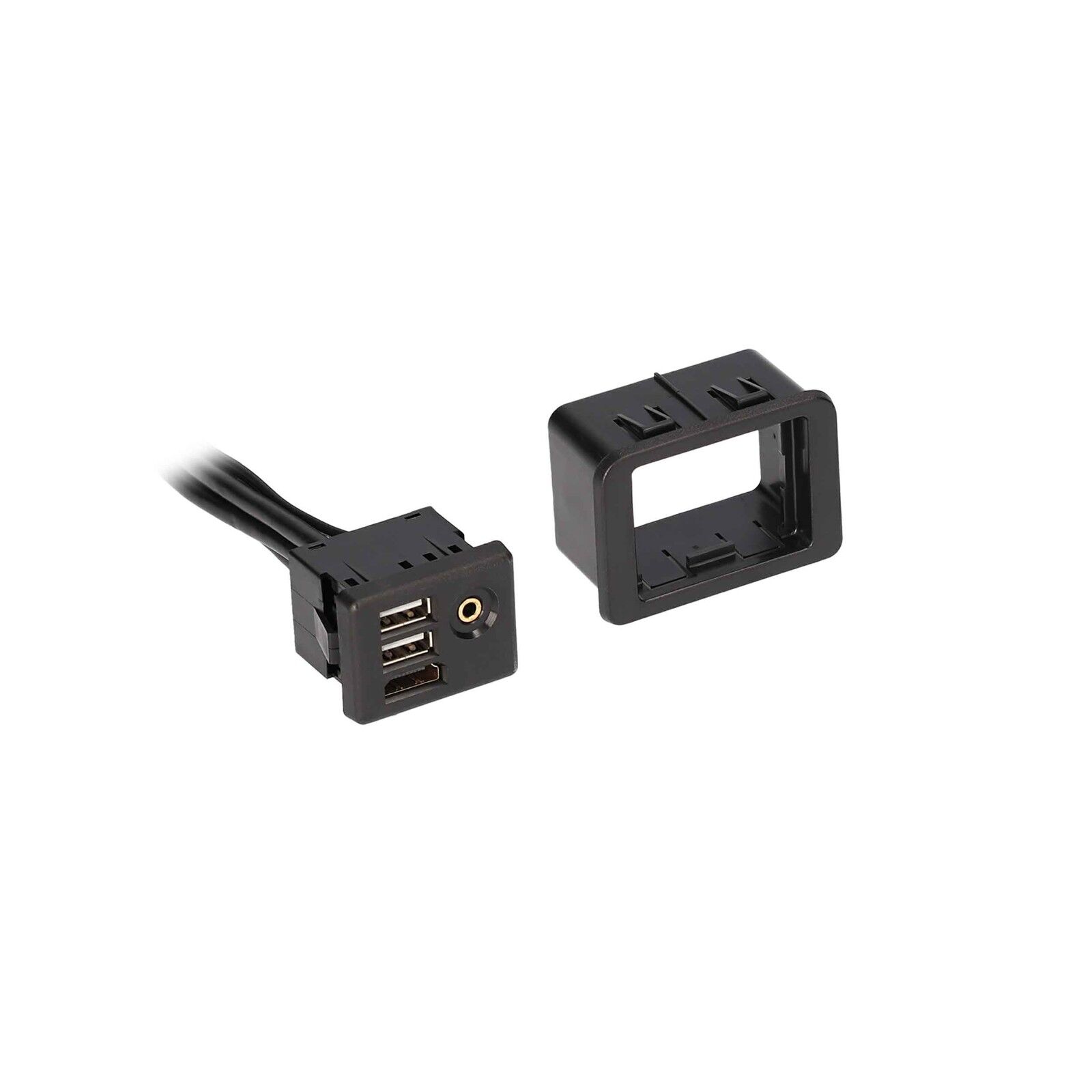

• Trim Overall: 1-3/4" (H) x 2-7/16" (W) x 1-1/4" (D)
• Vehicle specific fitment: RAM
• 2015 - and Up
• Media Hub located in the Seat Mounted Centre Console

What's Included

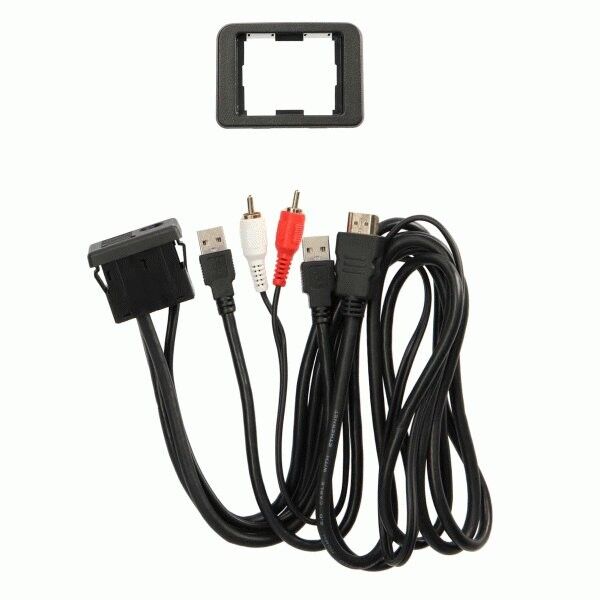

• 1 x Axxess AXUSB-RAM1 USB/AUX/HDMI replacement panel

Specifications

Warranty

Covered against manufacturing defects by the Australian distributor's warranty, in addition to your rights under Australian Consumer Law. Contact Street Sound & Vision for warranty support.
