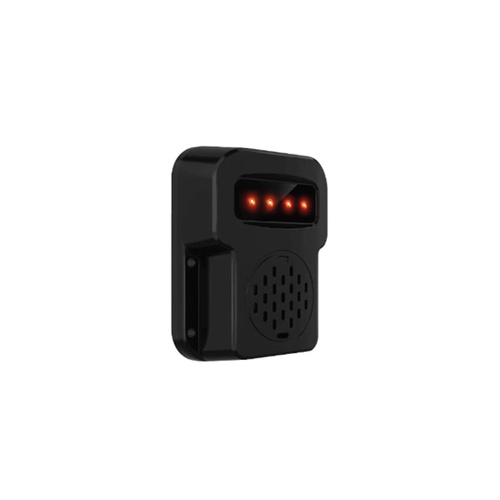

Autobacs VDA001 Vehicle Direction Alarm

The VDA001 (Vehicle Direction Alarm) by Autobacs is a safety device for heavy vehicles, designed to alert pedestrians and reduce accident risk. When turning or reversing, it emits a clear warning tone with a bright flashing light to alert nearby pedestrians, cyclists, and workers. Ideal for busy worksites and urban areas, it adds a vital layer of safety to large vehicle operations.

SPECIFICATIONS
Voltage: 10-32 Volt DC
Protection: IP67 D ust & Waterproof
LEDS: 4 x Fla shing LEDs
Alarm: 90 dB (Voice) / 93dB (Tonal Alarm)
1KHz Alarm
Type of Alarm: Tonal Alarm
Annuncitation : Left/Right/Reverse selectable
based on install location.

WIRING
RED: ACC (+10~32V)
BLACK: GND
YELLOW: Left Indicator (Left Turn Alarm +10~32V)
GREEN: Right Indicator (Right Turn Alarm, +10~32V)
ORANGE: Headlights (50% Vol & Brightness, +10~32V)
BLUE: Reversing Lamp (Reversing Alarm, +10~32V)
Note: Hazard Lights Disable The Alarm
