Autobacs APS600LED Truck and Trailer Docking Sensor System 6 Sensors with LED Indicators

Overview

The Autobacs APS600LED is an easy-to-use reversing sensor system designed for trucks and trailers. Fitted to a trailer, it works independently of the prime mover, so any prime mover can hitch up and still have reversing guidance.

Six angled rubber sensors detect obstacles from 0.3 to 2.0 metres. Two LED indicator arms flash faster as you get closer, turning solid at 0.3m or less, so the driver can judge the distance to an obstacle or loading dock. A buzzer with adjustable tone and a high/low volume switch is also included.

Key Features

• 6 x angled 20mm rubber sensors, IP68
• Detection range 0.3-2.0m
• 2 x LED indicator arms with variable flash rate by distance
• Buzzer with adjustable tone and high/low volume
• Works independently from the prime mover when fitted to a trailer
• 12V and 24V DC (10-32V operating range)
• IP67 control box with sensor error alarm and towbar adjustment (20cm offset)
• Comprehensive install kit including hole saw and angled shims

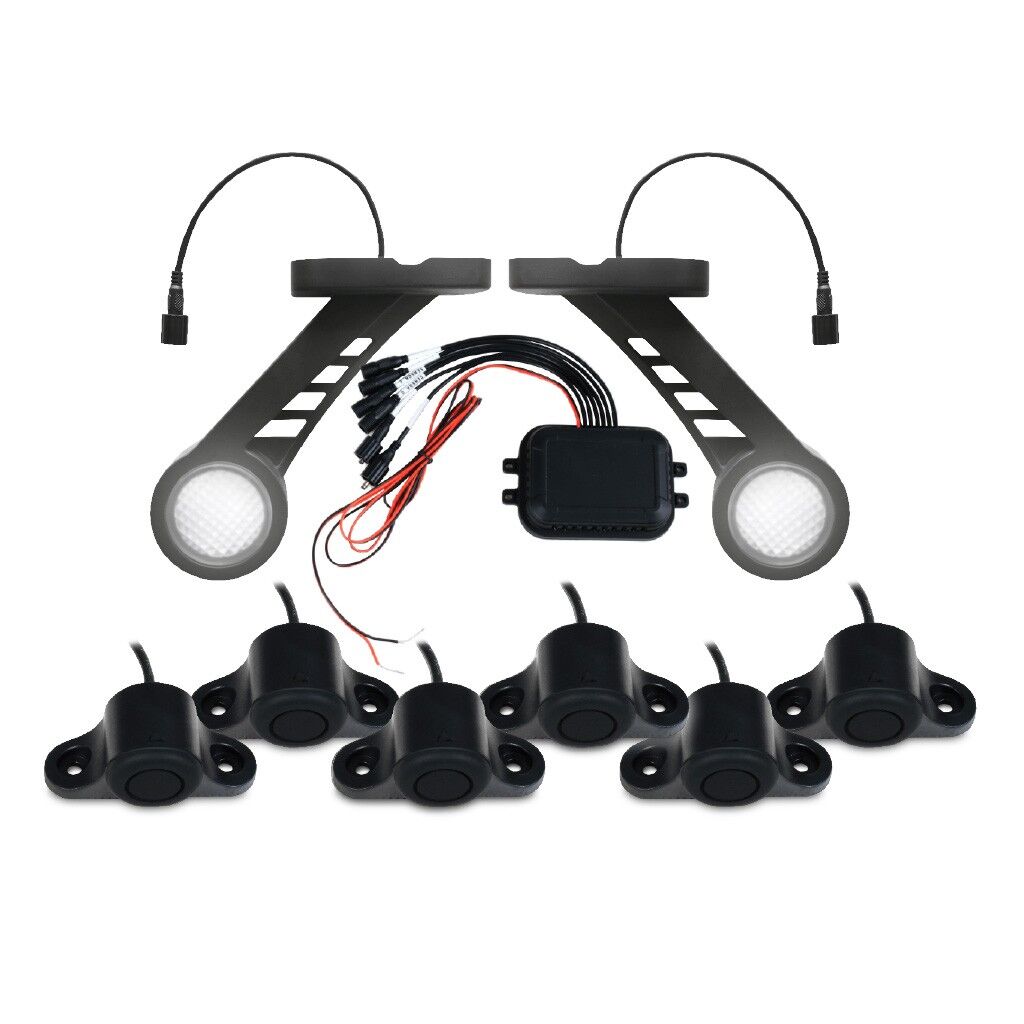

What's Included

• 1 x Control box
• 2 x LED indicator lamps
• 2 x 2.6m LED cables
• 6 x Rubber sensors
• 6 x Sensor mount brackets
• 4 x 3.1m sensor cables
• 2 x 5.6m sensor cables
• 4 x 7° angled shims
• 4 x 10° angled shims
• 4 x 13° angled shims
• 1 x 3M adhesive pad
• 1 x Hole saw
• 12 x Self-tapping screws
• 12 x Machine screws
• 12 x Nuts
• 12 x Spacers
• 10 x Cable ties
• 1 x Instruction manual
