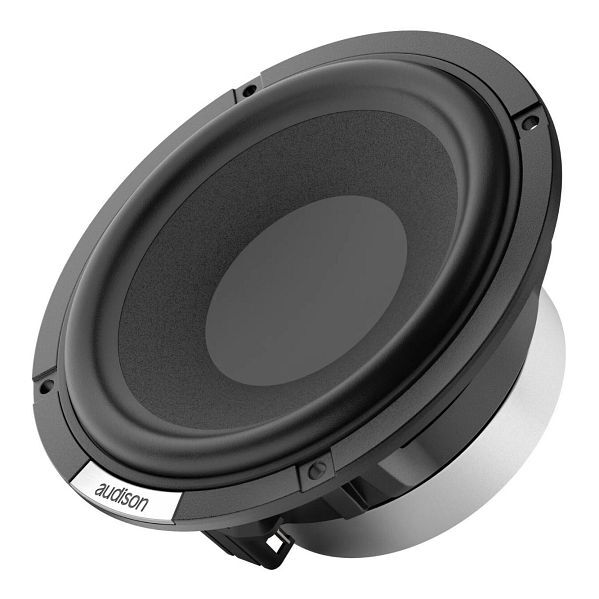

Audison AV6.5PII VOCE II - 6.5" WOOFER COMPONENT PAIR

The Audison VOCE II AV 6.5 P II woofer (Order code AV6.5PII) is engineered to deliver exceptional sound clarity and precision. It naturally rolls off at off-axis positions, eliminating the need for a low-pass filter in most door installations and reducing phase shifts common with other filters. It can employ a gentle 6 dB/Octave filter to enhance low and mid-bass tones, further enriching sound quality. The woofer’s OEM-style connector, compatible with FASTON terminals and designed for seamless integration, features a unique T-shaped pole piece with an aluminum ring to minimize distortion and enhance frequency response.

• System: Woofer
• Size: Woofer: 165mm (6.5")
• Power Handling:
  • Continuous: 150W
  • Peak: 300W
• Sensitivity: 91 dB
• Impedance: 4 Ohm
• Frequency Response: 45 - 7500 Hz
• Woofer Magnet Size (D x d x h): 100 x 45 x 18mm
• Woofer Voice Coil: 40mm
• Xmax: 4.95mm
• Weight of One Speaker: 1.6 kg
• Cone: Semi-Pressed Paper
• Notes: Optional Grilles available (Sold separately)
  • Black: AVG65BII
  • Silver: AVG65SII

• 1.6 in. (40 mm) CCAW Voice Coil (Copper-Clad Aluminum Wire): Maximizes excursion capability and heat dissipation, allowing the driver to handle 150W RMS power, delivering powerful bass without dynamic compression, even at high listening volumes.
• Low Inductance Design: Optimizes upper midrange (2-3 kHz) reproduction, improving the clarity of vocals and instruments, thanks to an aluminum shorting ring built-in the motor.
• Oversized Magnetic Assembly: Provides exceptional thermal stability, ensuring optimal dynamic reserve in any listening condition.
• FEM optimized Magnetic Circuit Geometry: Maximizes efficiency by concentrating the magnetic field on the coil for more precise, dynamic sound.
• Semi-pressed Pulp Cone with Cotton Fibers: Combines rigidity and lightness for a wide frequency response and clean reproduction, even in midrange frequencies.
• Die-Cast Aluminum Basket with magnet cover: Enhances heat dissipation and reduces turbulent airflows, ensuring maximum rigidity and high performance over time, even during prolonged use.
• High Excursion Butyl Rubber Surround and Optimized Spider: Uses advanced simulations to ensure greater linearity and cone control, reducing distortion during intense excursions.
• Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logo badges, allowing for personalized placement to enhance branding and aesthetics.
• Optional Black or Silver Mesh Metal Grille: Provides robust protection without compromising acoustic performance, adding a touch of elegance to the installation for perfect cabin integration.
• eID Technology: Ensures product traceability from production to the final owner, guaranteeing authenticity and security.
