Alpine Status 12" Subwoofer Kit: HDZ-W12 12" Subwoofer, HDA-M80 Mono Amplifier & ETON PCC20 4AWG Power Kit

Overview

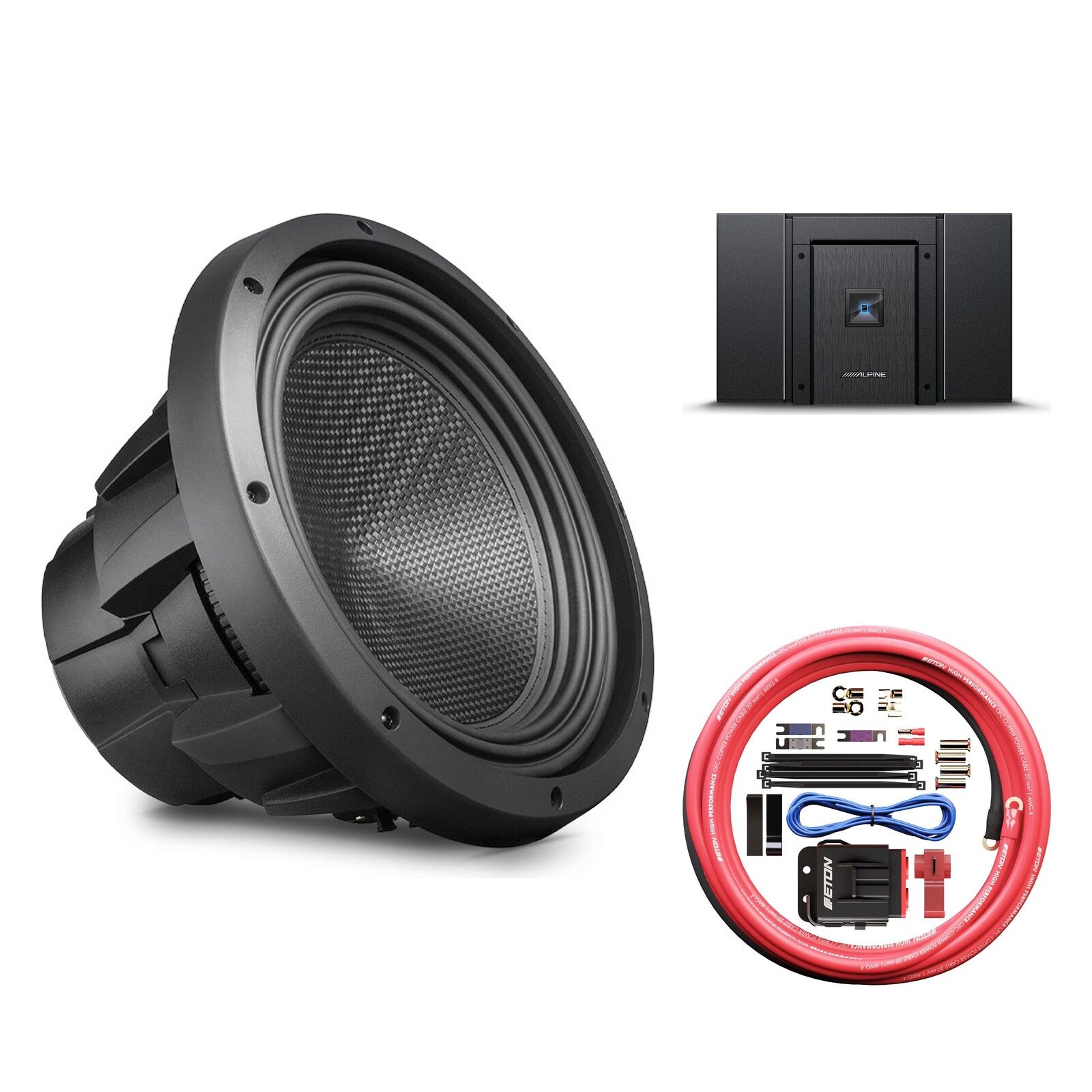

This Alpine Status 12" subwoofer kit combines the Alpine Status HDZ-W12 12-inch subwoofer with the Alpine Status HDA-M80 mono amplifier, plus an ETON PCC20 20mm² (AWG 4) power cable kit to connect the amplifier.

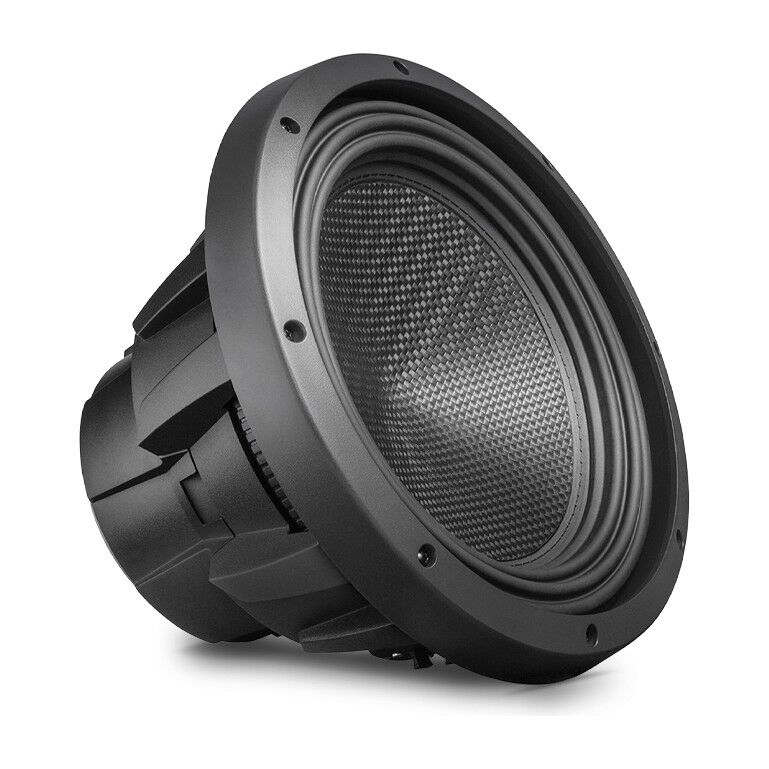

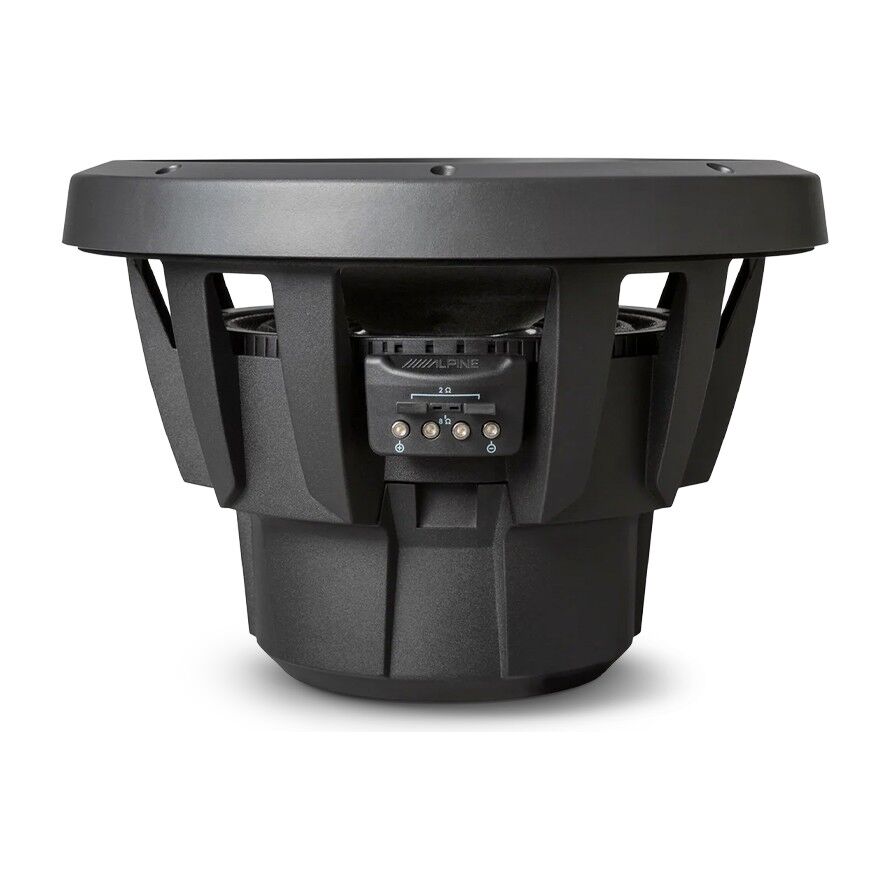

The HDZ-W12 is rated at 800W RMS and 2,400W peak, with a pulp-mica cone, carbon-fibre dust cap, Alpine's HAMR (High Amplitude Multi-Roll) surround, dual progressive spiders, triple-stacked strontium ferrite magnets and a cast-aluminium frame. Its dual 4-ohm voice coils can be wired in series (8 ohms) or parallel (2 ohms).

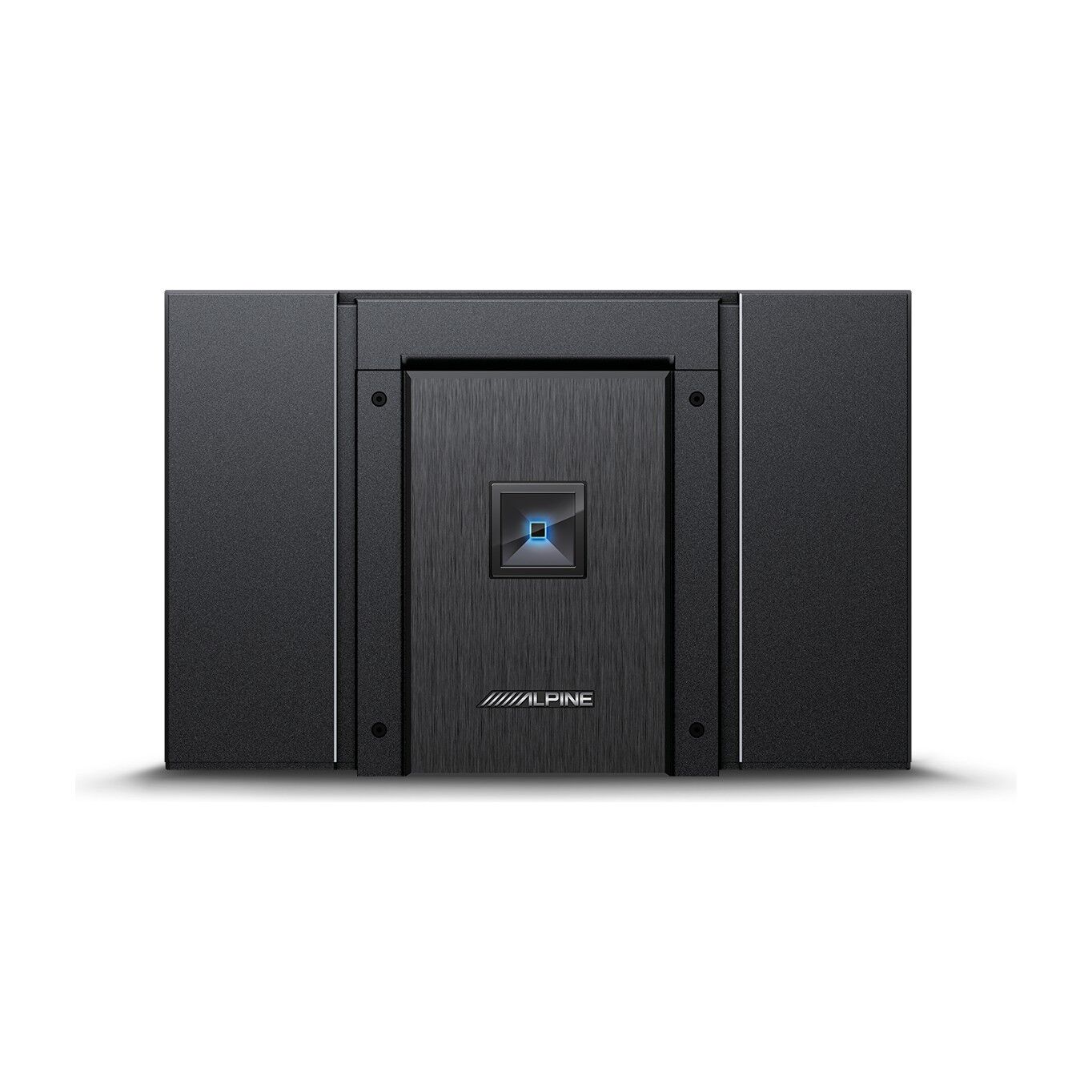

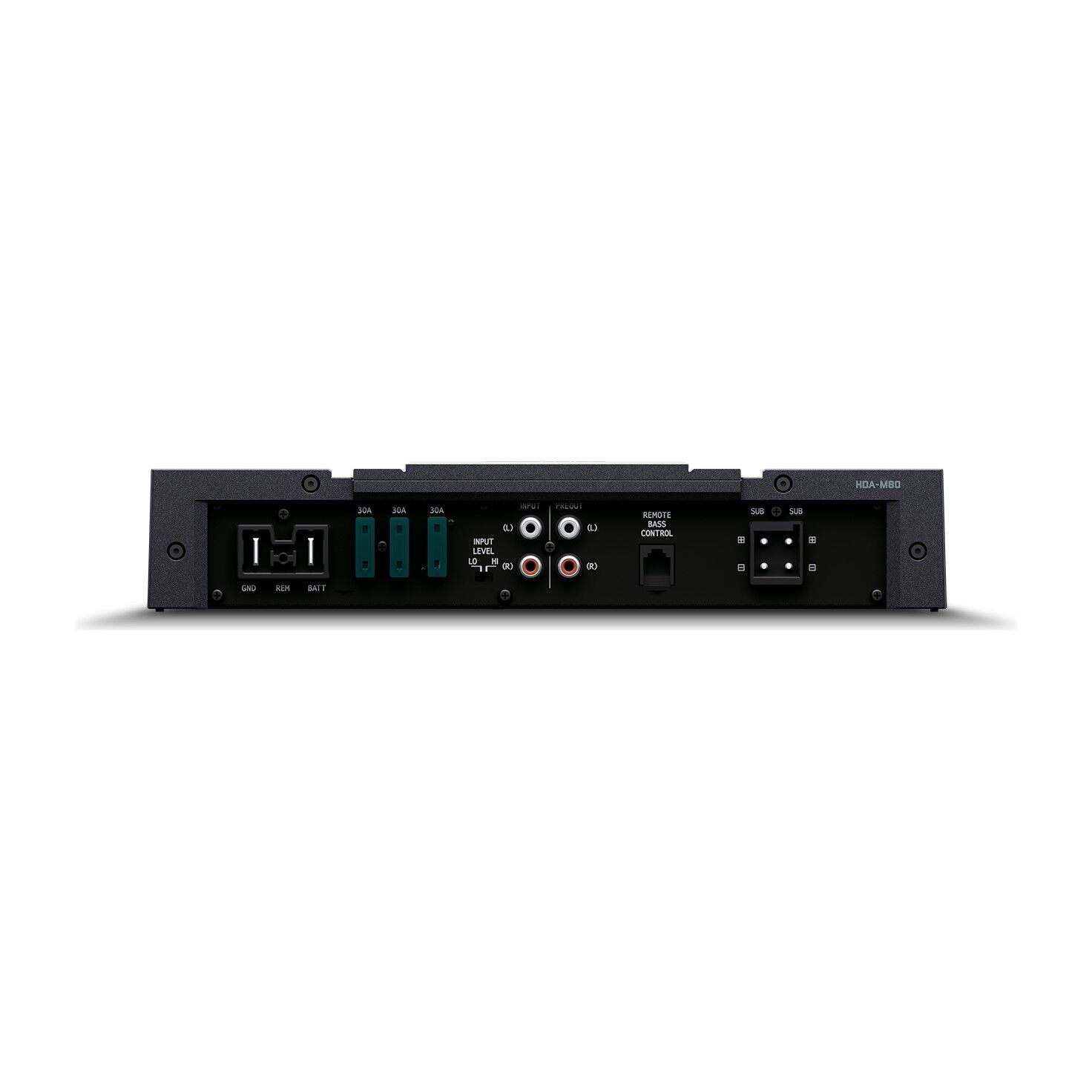

The HDA-M80 is the Alpine Status mono amplifier, rated at 500W x 1 at 4 ohms and 800W x 1 at 2 ohms, with a damping factor of more than 1,500, a copper-plated chassis, quick-connect power and speaker connectors and Alpine's improved heat sink and protection design that eliminates thermal shut-down. With the subwoofer's dual 4-ohm coils wired in parallel (2 ohms), the HDA-M80 is rated at 800W RMS, matching the HDZ-W12's 800W RMS power handling.

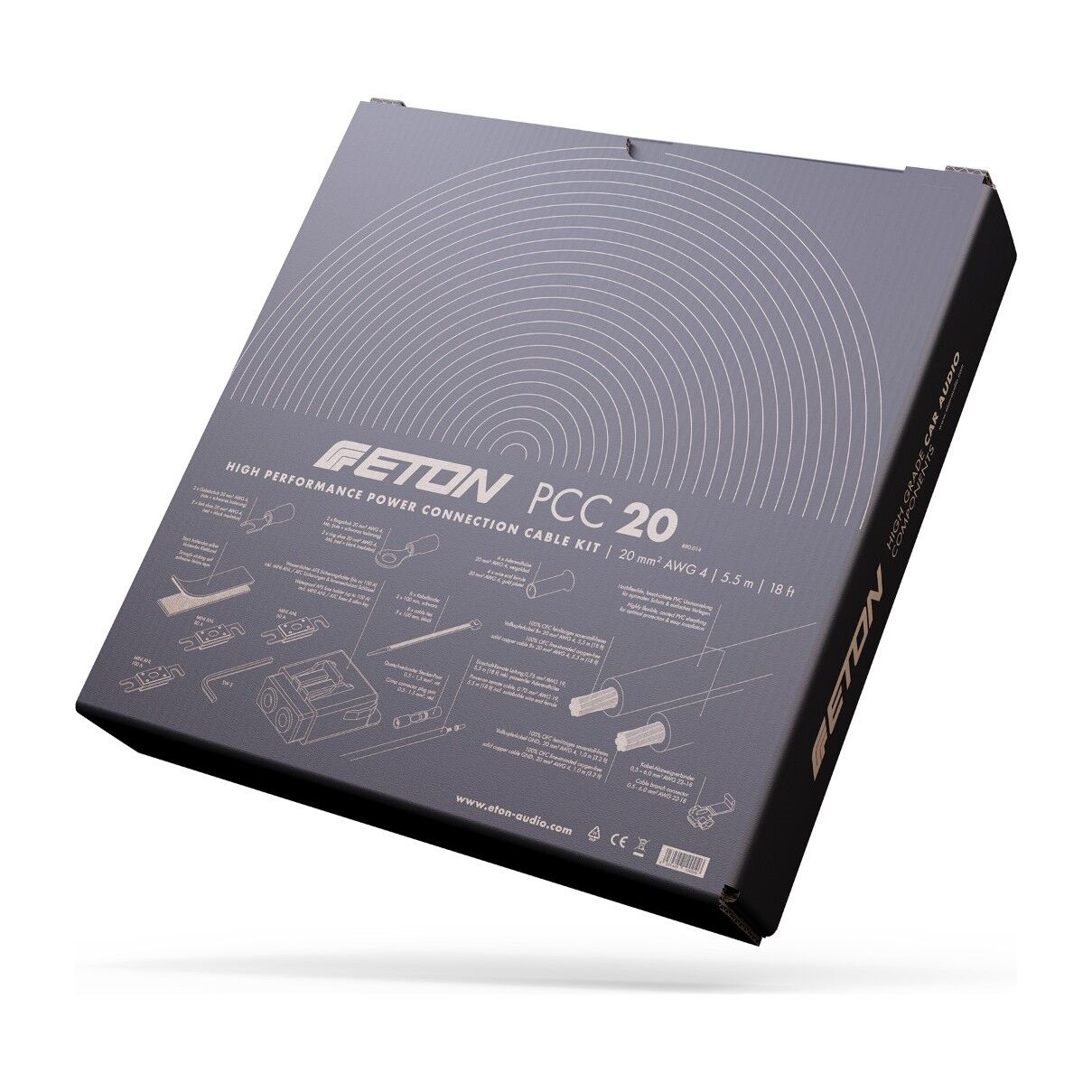

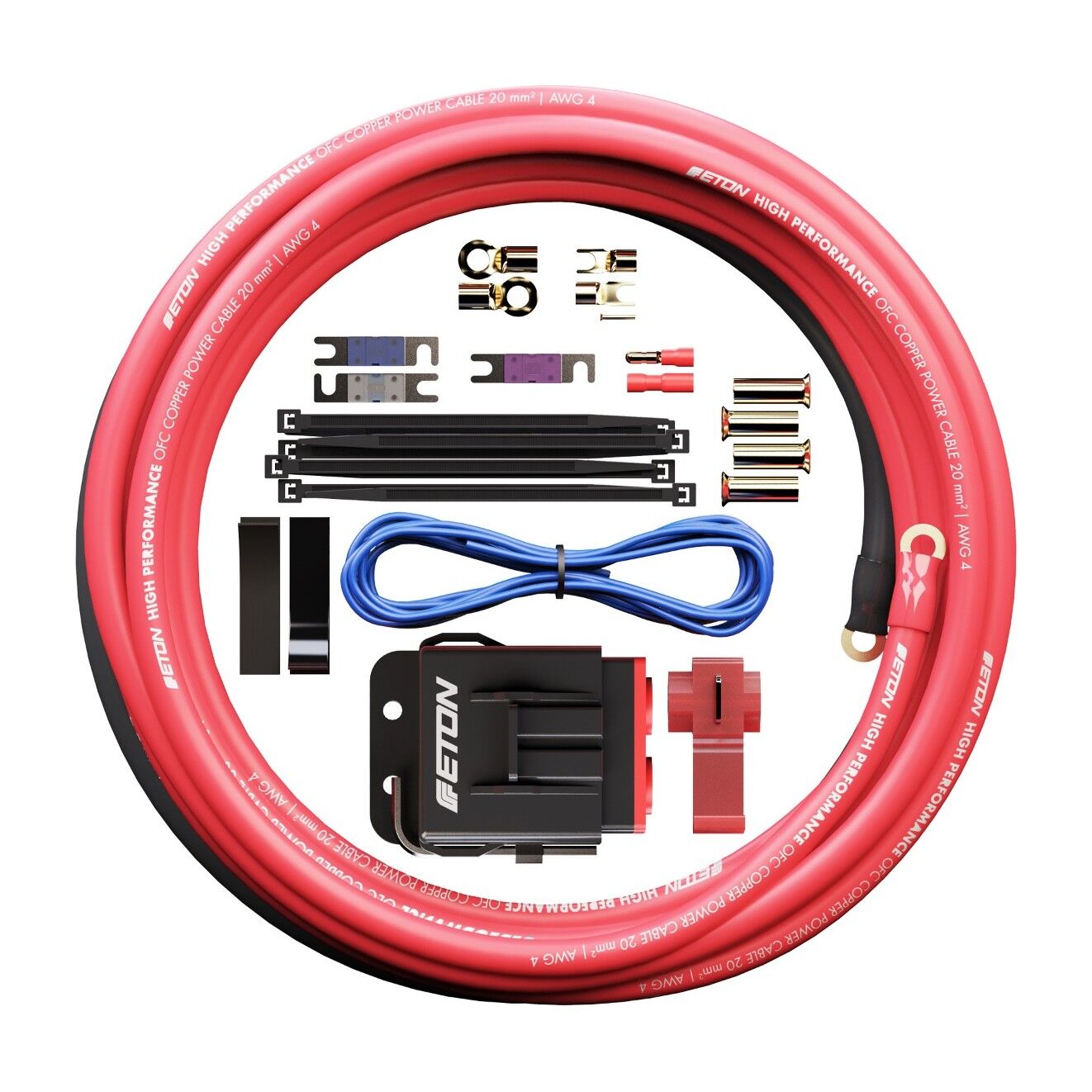

The ETON PCC20 kit includes 5.5 m of red 20mm² (AWG 4) 100% OFC power cable, 1.0 m of black ground cable, a waterproof AFS fuse holder with 100 A, 80 A and 60 A Mini ANL fuses, 5.5 m remote turn-on cable and the terminals needed for the install.

Key Features

• Alpine Status HDZ-W12 12" subwoofer - 800W RMS / 2,400W peak, dual 4 ohm
• 20 mm linear excursion, 65.5 mm voice coil, HAMR surround

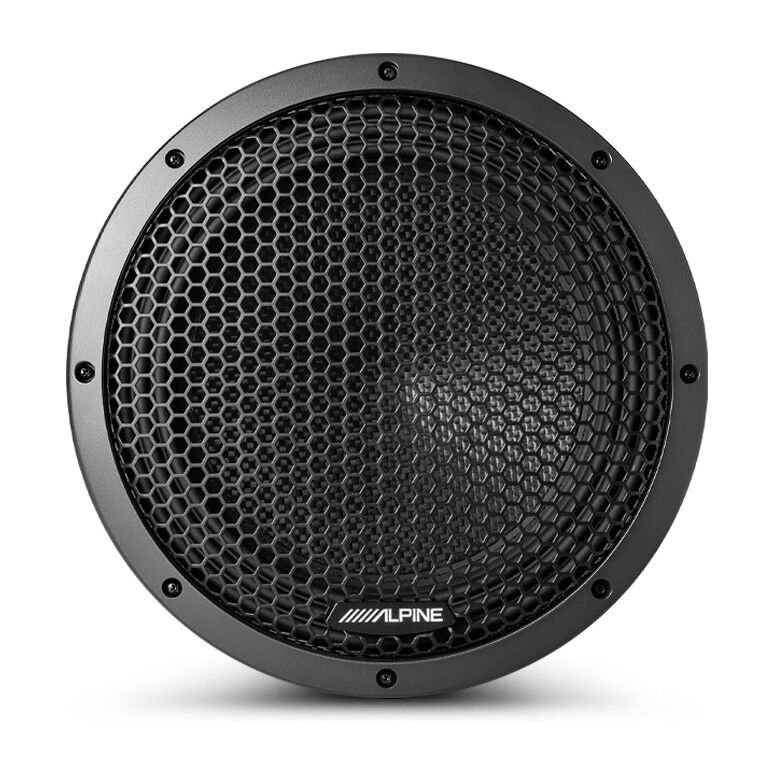

• Premium Alpine Status open-mesh grille and aluminium trim ring included with the subwoofer
• Alpine Status HDA-M80 mono amplifier - 500W x 1 (4 ohms), 800W x 1 (2 ohms)
• HDA-M80 frequency response 8-400Hz (-3dB), S/N ratio greater than 107dB, damping factor greater than 1,500
• ETON PCC20 20mm² (AWG 4) OFC power cable kit with fuse holder and fuses

What's Included

• 1 x Alpine Status HDZ-W12 12" subwoofer (with grille and aluminium trim ring)
• 1 x Alpine Status HDA-M80 mono amplifier
• 1 x ETON PCC20 20mm² (AWG 4) power cable kit

Please Note

• The HDZ-W12 is a subwoofer driver only - an enclosure is not included. Alpine recommends a sealed enclosure of 21.2-56.6L net internal volume or a ported enclosure of 28.3-56.6L (tuning 30-36Hz).
• Alpine specifies an external fuse at the battery for the HDA-M80 of the same or slightly larger capacity than 90 A.

Warranty

Manufacturer's warranty applies to each item. This is in addition to your rights under the Australian Consumer Law.
