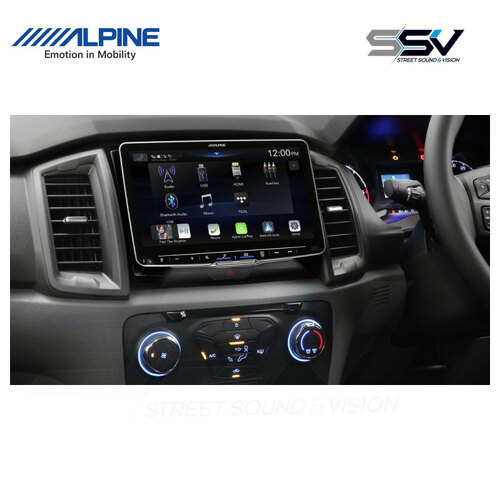

Alpine ILX-F509A  Premium Halo Solutions to suit Ford Ranger Vehicle Compatibilty

Suits Ford Ranger PX II XL and XLS Only, Everest UA Ambiente

Compatible 2016-2019

Halo9 9” High-Res Audio Receiver with Wireless Apple CarPlay / Wireless Android Auto / HDMI / USB / Dual Camera / Bluetooth / Hi-Res Audio Wireless / LDAC / DAB+ Suitable for Ford Ranger PX II/III

Combine both functionality and interior appeal in your Ranger with Alpine’s premium 9” multimedia infotainment system. The iLX-F509A introduces industry-first innovations, harmoniously integrating a stunning high-definition WXGA display, Hi-Res Audio specifications and advanced wireless connectivity.

Hi-definition video from a USB or HDMI sources has never looked so good with the ultra-high-quality WXGA display. Equipped with 2.7 million individual pixel elements and a revolutionary laminated construction, the iLX-F509A reproduces life-like images and colour vibrancy to the dashboard to provide the highest standard of image performance.

Wireless Apple CarPlay and Android Auto allows for an endless array of smartphone features and entertainment to the dashboard. Get directions, make calls, send and receive messages and listen to high-resolution streaming music all without a cable in sight.

The iLX-F509A brings the concert to the cockpit with Hi-Res Audio and LDAC wireless technology, letting you play high-resolution music via USB, or streaming via smartphone music services and apps revealing the original recording the way the artist intended.

With the world’s first built-in Class-D amplifier the iLX-F509A reinvents head unit power, delivering the richness and acoustic crescendos of virtually any music style and live performances through any loudspeaker.

With unrivalled technology and connectivity, as well as impeccable visual clarity and high-resolution audio, the iLX-F509A is a magnificent centrepiece for any dashboard—bringing the emotion of music and pure enjoyment to every drive.

Steering Wheel Controls

Have control of the factory steering wheel audio controls in your vehicle, as well as answer and hang up with Alpine’s built in Bluetooth connectivity.

Rear Camera Option

The optional rear-view camera automatically engages when reversing and also mutes audio so you can manoeuvre your vehicle safely with full concentration.

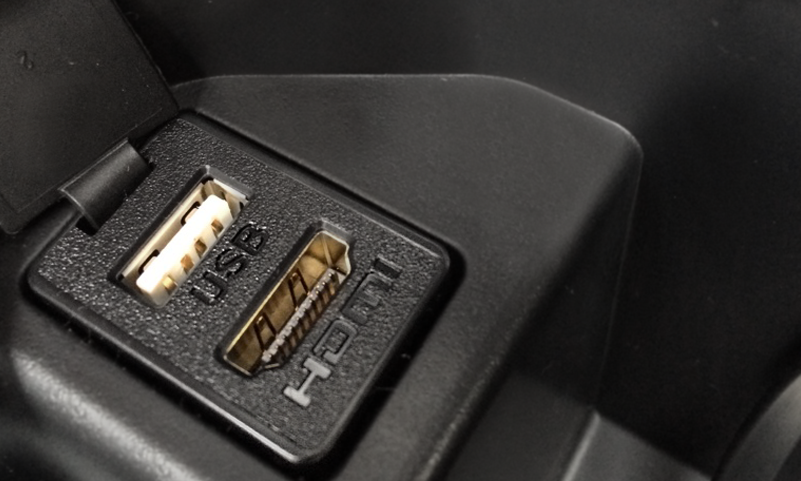

HDMI & USB Input Panel

Designed to suit specific Hilux models, this input panel makes connecting HDMI & USB easier than ever! Watch content from a number of devices on your high resolution screen.

High-Definition Laminated Display

Alpine’s incredible WXGA display has to be seen to be believed, colours are intensely vibrant and realistic, video motion is ultra-smooth and the image detail is razor sharp. Moreover, with its laminated display technology brightness and contrast is truly next level, so no matter the lighting conditions or viewing angle the display reveals incredible clarity and true-to-life colour. Alpine’s new WXGA high definition display is simply stunningly beautiful—bringing a cinematic experience right into your dashboard.

Apple CarPlay Wireless or USB

No wires, no fuss, just get in and drive with your iPhone wirelessly connected to use Apple CarPlay. Listen to your favourite music apps, make and receive calls or messages, use maps or navigation apps, all at your command via the display or voice control. If you need to charge-up then plug-in your iPhone via USB.

Android Auto Wireless or USB

The convenience of Android Auto allows a wide-array of applications into the dash of your car. Interact via touch or voice command you can make calls and messages, play music apps and much more. All this, now with wireless connectivity or if you need to charge-up on the go simply connect via the USB port.

Smartphone Navigation

Through the incredible Alpine WXGA high-definition display you have the access and convenience of highly accurate navigation, further enhancing the Apple CarPlay and Android Auto and experience.

With an array of navigation platforms and apps available, for example Apple Maps, Google Maps, Waze and Sygic you can search and get to your destination with ease. You’ll have voice and visual prompts of turn-by-turn navigation and finding locations is a breeze via the display or using voice control.

Furthermore, with the built-in GPS/GLONASS circuit and antenna, as well as vehicle speed pulse sense connectivity ensures your actual vehicle position has pin-point accuracy on the road. This keeps you on route when driving through complex and dense city road systems, tunnels, bridges and elevated mountain highways and terrains.

Spotify

Access the worlds music library with millions of tracks and episodes available on Spotify. When using Apple CarPlay or Android Auto with the Spotify app, you can play the latest songs from your favourite artists, charts and playlists. Plus, browse through the collections of friends, artists, celebrities and radio stations all from the comfort of the driver’s seat. All this, without a single physical connection thanks to the added convenience of Wireless Apple CarPlay and Android Auto.

Audio Streaming Apps

With Apple Music onboard for Apple CarPlay you have access to 60+ million ad-free songs at your fingertips which you can search genres, artists, podcasts and expertly crafted playlists. With the use of Apple CarPlay or Android Auto, Amazon Music and YouTube Music provides limitless entertainment to stream or download songs from a list of over 40 million ad-free tracks. Amazon Music, YouTube Music and Apple Music are paid subscriptions.

Tidal Built-In

With TIDAL built-in, stream all your favourite artists wirelessly in incredible master-quality definition. Providing you exclusive access to high-profile music and original content – experience a more intimate connection with music creators through intuitive playlist curation and ability to save your favourite albums, tracks or playlists to the preset menu for quick access. Furthermore, MQA Studio playback ensures absolute audio authenticity, exactly to the artists original recording. Never before seen in car audio, TIDAL’s wireless Hi-Res audio streaming is a must for the modern audiophile.

Built-in Class-D Amplifier

An industry world first, the iLX-F511A is equipped with Class-D amplifier technology producing a massive 50 x 4 Watts of power, delivering the best sound quality and dynamics from high-resolution music. Class-D amplifiers are known to be highly efficient and capable of beautiful high-end sound reproduction with significantly reduced noise and phase shift. What’s more, new ultra-high-spec fans and internal heat sinks direct and dissipate any unwanted heat, ensuring optimum temperature control and audio performance.

External Control Knob (RUE-BK01A sold separately)

The RUE-BK01A external control knob (sold separately) connects wirelessly to the iLX-F511A and can be installed on either side of the display for added convenience. Alternatively, you can place the control knob anywhere else within the vehicle and for custom installation professionals the mounting possibilities are virtually endless. Rotation of the knob controls the unit volume output, while a push of the knob will cycle through your vehicles safety cameras on screen.

Advanced Sound Tuning

Alpine sound quality performance is of the highest standards and with advanced sound tuning you are empowered with the tools to tune your system to perfection, as well as to the specific environment of your vehicle.

Featuring a 56-band Parametric EQ in the advanced mode, a 2-way digital crossover, 6-channel digital time correction, plus several Bass Engine SQ and MediaXpander settings provides sound tuning for simple to comprehensive high-end systems with multiple power amplifiers, speakers and subwoofers.

2x USB Connections

The 2x rear USB ports allow for even greater flexibility. USB port 1 provides fast charging of your smartphone while using wireless connectivity. USB Port 2 is your entertainment gateway, allowing audio and video playback via connection of a memory stick, portable drive or SSD and if desired wired connectivity to your smartphone for Apple CarPlay and Android Auto.

DAB+ Digital Radio

DAB+ provides you with a range of quality digital only stations that you can search by station name and genres. DAB+ offers a variety of stations with music eras and types, as well as talkback stations. DAB+ displays station info and music metadata, offers clearer sound and improved reception, achieving a noise free, crystal clear radio listening experience.

Hi-Res Audio Certified with USB and Wireless Connectivity

Audiophile and music fans can now enjoy a true high-fidelity audio experience with the astonishing detail and musical beauty of Hi-Res Audio. The iLX-F511A supports up to 192kHz/24Bit FLAC/WAV and APE high-resolution audio files with their intended playback specification of 96kHz/24Bit. This means, no longer do you have to compromise your listening experience lost in highly-compressed traditional audio formats, in Hi-Res your music now comes alive with stunning clarity and every nuance revealed, just as the artist intended. When playing Hi-Res Audio files the iLX-F511A will display the Hi-Res icon and file bit rate.

Even more impressive, equipped with Hi-Res Audio Wireless and LDAC technology, you can connect your smartphone via USB or wirelessly and use Hi-Res Audio streaming services or apps bringing a virtually limitless music library with the purest sound right inside your car.

HDMI Connectivity

HDMI enables connectivity to a number of different devices including smartphone mirroring—making audio and video playback possible in high-definition through the 9” display for virtually limitless entertainment.

Built-In Bluetooth

Built-in Bluetooth enables wireless connection of a mobile phone for the convenience and safety of hands free phone and audio streaming. Plus, you can use voice control through the external microphone included.

CAN-UART Compatibility

CAN-UART capability provides connection to a vehicle specific interface for display of climate information, park assist and steering wheel controls. In addition, system information can be sent to vehicle sub-displays. Check with your Alpine Dealer for compatible vehicles and interfaces.

Dual Camera Input

The iLX-F511A provides the opportunity to add a reverse and either front or side camera directly to the unit itself. You can toggle between these camera’s directly from the camera screen, allowing a wide view of any potential obstacles around your vehicle.

Precisely Adjustable Display Angle

The iLX-F511A provides even greater installation flexibility. At anytime you can set the display angle in between +45 degrees to -20 degrees to specifically suit the dashboard and your desired viewing position. Also, if need be you can set your desired angle on the fly to mitigate glare in certain conditions.

Adjustable Display Height

Positioning of the display in the dashboard is crucial for aesthetics and function. The display height can be adjusted +/- 3cm above or below from the centre position, allowing installation into virtually any dashboard with a 1 or 2 DIN slot. You can also adjust the distance of the display to your dash with a 20mm range.

1-DIN Blanking Plates for 2-DIN Installation (Optional)

The KAE-1DT and KAE-1DB (optional) blanking plates makes any 2-DIN installation a breeze with a professional finish. These plates fill the void of the 1-DIN space either at the top or underneath when using a conventional 2-DIN dash fascia installation kit.

1-DIN Blanking Plate Fitment (Optional)

The KAE-1DT and KAE-1DB are securely fitted to either the top or bottom of the iLX-F509A chassis, allowing the space to be filled regardless of if the unit is installed higher or lower in the dash. Secured by machine thread screws makes installation of the blanking plate simple and robust.
