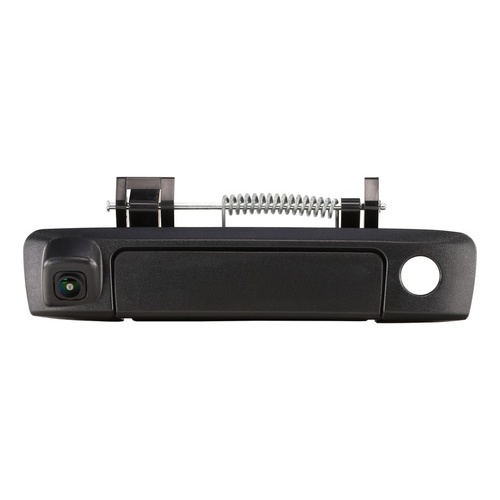

Aerpro APC22 Tailgate Handle Camera To Suit Ford Ranger & Mazda BT-50 2012-2021

SKU:APC22

$229.99



In Stock


Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

Add a discreet reverse camera built into the tailgate handle of your Ford Ranger or Mazda BT-50 2012-2021 with the Aerpro APC22.

  • Ford Ranger / Mazda BT-50 Specific Fitment Vehicle specific reverse camera designed to suit Ford Ranger / Mazda BT-50 models (2012-2021) for a seamless OEM style installation.
  • Tailgate Handle Replacement Design Mounts discreetly in place of the factory handle without the need to drill additional holes into the vehicle.
  • 105° Wide Viewing Angle Reduces rear blind spots and improves visibility when reversing or manoeuvring.
  • Selectable Parking Guidelines Switchable visual guidelines provide helpful reference when parking or reversing into tight spaces.
  • AHD 720P or CVBS Video Output Selectable via loop wire for broad compatibility with a wide range of aftermarket head units and Aerpro Advanced Safety Vision monitors.
  • IP68 Waterproof Rating Protects the camera from dust, mud, and water ingress for reliable performance in harsh conditions.
  • Durable ABS Housing Built to withstand the demands of tough automotive environments.
  • Wide Operating Temperature Range Rated from -30°C to +80°C for dependable operation in both extreme heat and cold climates.
  • Includes 10M Heavy Duty Cable and 4-Pin to RCA Adapter Provides everything needed for flexible integration with most aftermarket displays.

To suit vehicle:

  • Ford Ranger 2012-2015 PX
  • Ford Ranger 2015-2018 PX MkII
  • Ford Ranger 2018-2021 PX MkIII
  • Mazda BT-50 2012-2018

(APC22)

Vehicle Application:

  • Ford Ranger 2012-2015 PX
  • Ford Ranger 2015-2018 PX MkII
  • Ford Ranger 2018-2021 PX MkIII
  • Mazda BT-50 2012-2018

Installation Position: Tailgate Handle

Camera Orientation: Reverse

Selectable (Loop Wire): Yes

  • Green = AHD/CVBS (Default: AHD)
  • White = Fixed Guidelines (Default: ON)

Image Sensor Type: CMOS

TV System: NTSC (CVBS)

Video Output: AHD 720P or CVBS

Viewing Angle (Diagonal): 105°

Minimum Illumination (Lux): 0.1 Lux

Parking Guidelines: Selectable

Waterproof Rating: IP68

Operating Voltage Range: 12V DC (9-16V)

Current Consumption (mA): 450mA

Operating Temperature Range: -30°C to +80°C

Connector Type (Camera End): 4-Pin Heavy Duty Female

Connector Type (Harness End): 4-Pin Heavy Duty Male (RCA Adapter Included)

Camera Cable Length: 0.5M + 10M Extension

Mounting Type: OEM Replacement

Housing Material: ABS

Dimensions (mm):

Trigger Wire Included: No

Trigger Wire Type: Not Applicable

Adaptable to Factory Screen: Yes – requires optional adaptor (sold separately). Vehicles equipped with a 4.2" factory display require APVFD03.

Inclusions:

  • Camera
  • 10-metre Video Cable, 4-pin
  • 4-pin to RCA Adapter Cable
