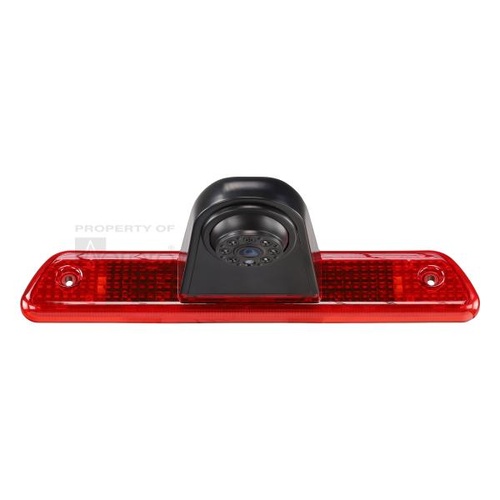

Aerpro APC166 Brake light camera to suit Peugeot expert 2007-2016

The Aerpro APC166 is a vehicle specific brake light reverse camera designed to suit Peugeot Expert models (2007-2016). Designed to replace the factory brake light housing, it provides a clean OEM style installation without the need to drill additional holes into the vehicle.

Designed specifically to assist with reversing and parking, the APC166 delivers a clear rear view with a 105° diagonal viewing angle that helps reduce blind spots behind the vehicle. The camera also features selectable parking guidelines that provide helpful visual reference when manoeuvring into tight spaces. These guidelines can be enabled or disabled during installation to suit the driver's preference.

Built to handle harsh automotive environments, the APC166 features a tough ABS housing and an IP68 waterproof rating, protecting it from dust, dirt, and water exposure. With an operating temperature range of -30°C to +80°C, it performs reliably in both extreme heat and cold conditions.

The camera supports AHD 720P or CVBS video output, selectable via loop wire, allowing compatibility with a wide range of aftermarket head units and Aerpro Advanced Safety Vision monitors. Included with the camera is a heavy duty 10 metre video cable with 4-pin heavy duty connectors, along with an adapter to convert the 4-pin connection to RCA for easy integration with most aftermarket displays.

Features:
Peugeot Expert Specific Fitment Vehicle specific reverse camera designed to suit Peugeot Expert models (2007-2016) for a seamless OEM style installation.
Brake Light Housing Replacement Installs within the factory brake light position without the need to drill additional holes into the vehicle.
105° Wide Viewing Angle Reduces rear blind spots and improves visibility when reversing or manoeuvring.
Selectable Parking Guidelines Switchable visual guidelines provide helpful reference when parking or reversing into tight spaces.
AHD 720P or CVBS Video Output Selectable via loop wire for broad compatibility with a wide range of aftermarket head units and Aerpro Advanced Safety Vision monitors.
IP68 Waterproof Rating Protects the camera from dust, mud, and water ingress for reliable performance in harsh conditions.
Robust ABS Housing Lightweight yet durable construction designed to withstand the demands of tough automotive environments.
Wide Operating Temperature Range Rated from -30°C to +80°C for dependable operation in both extreme heat and cold climates.
Includes 10M Heavy Duty Cable and 4-Pin to RCA Adapter Provides everything needed for flexible integration with most aftermarket displays.

Specs:
Vehicle Application:
Peugeot Expert 2007-2016
Installation Position: Brake Light
Camera Orientation: Reverse
Selectable (Loop Wire): Yes
Green = AHD/CVBS (Default: AHD)
White = Fixed Guidelines (Default: ON)
Image Sensor Type: CMOS
TV System: NTSC (CVBS)
Video Output: AHD 720P or CVBS
Viewing Angle (Diagonal): 105°
Minimum Illumination (Lux): 0.1 Lux
Parking Guidelines: Selectable
Waterproof Rating: IP68
Operating Voltage Range: 12V DC (9-16V)
Current Consumption (mA): 450mA
Operating Temperature Range: -30°C to +80°C
Connector Type (Camera End): 4-Pin Heavy Duty Female
Connector Type (Harness End): 4-Pin Heavy Duty Male (RCA Adapter Included)
Camera Cable Length: 0.5M + 10M Extension
Mounting Type: OEM Replacement
Housing Material: ABS
Dimensions (mm):
Trigger Wire Included: No
Trigger Wire Type: Not Applicable
Adaptable to Factory Screen: No
Inclusions:
Camera
10-metre Video Cable, 4-pin
4-pin to RCA Adapter Cable
Foam Gasket

Vehicles known to work with this product:

• Peugeot Expert 2007-2016
