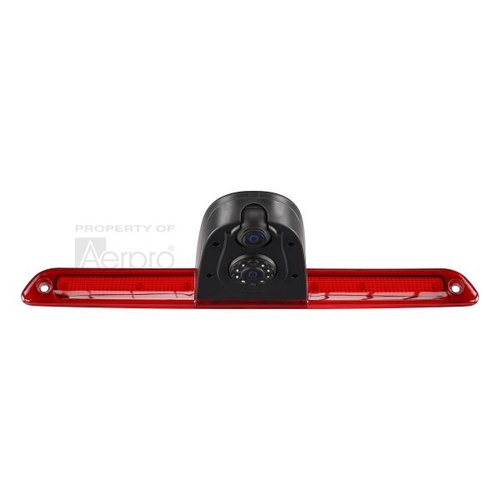

Aerpro APC164D Brake light camera to suit mercedes sprinter 2007-2020 - dual lens

The Aerpro APC164D is a vehicle specific brake light reverse camera designed to suit Mercedes Sprinter models (2007-2020). Designed to replace the factory brake light housing, it provides a clean OEM style installation without the need to drill additional holes into the vehicle. The APC164D is supplied as a dual camera kit, with two complete camera sets included to provide comprehensive rear vision coverage, ideal for vehicles with twin rear door configurations.

Designed specifically to assist with reversing and parking, the APC164D delivers a clear rear view with a 100-110° diagonal viewing angle that helps reduce blind spots behind the vehicle. The camera also features selectable parking guidelines that provide helpful visual reference when manoeuvring into tight spaces. These guidelines can be enabled or disabled during installation to suit the driver's preference.

Built to handle harsh automotive environments, the APC164D features a tough ABS housing and an IP68 waterproof rating, protecting it from dust, dirt, and water exposure. With an operating temperature range of -30°C to +80°C, it performs reliably in both extreme heat and cold conditions.

The camera supports AHD 720P or CVBS video output, selectable via loop wire, allowing compatibility with a wide range of aftermarket head units and Aerpro Advanced Safety Vision monitors. Included with each camera is a heavy duty 10 metre video cable with 4-pin heavy duty connectors, along with an adapter to convert the 4-pin connection to RCA for easy integration with most aftermarket displays.

IMPORTANT INFORMATION

Please note that this camera can be adapted to display on the original factory screen (CVBS configuration only), however this requires a compatible display adaptor (sold separately). 2007-2018 models require APVEU11; 2018-2020 models require APVMC22 or APVMC23 (Factory radio dependent).

Features:
Mercedes Sprinter Specific Fitment Vehicle specific reverse camera designed to suit Mercedes Sprinter models (2007-2020) for a seamless OEM style installation.
Brake Light Housing Replacement Installs within the factory brake light position without the need to drill additional holes into the vehicle.
Dual Camera Kit Includes two complete camera sets for comprehensive rear vision coverage, ideal for vehicles with twin rear door configurations.
Wide Viewing Angle (100-110°) Reduces rear blind spots and improves visibility when reversing or manoeuvring.
Selectable Parking Guidelines Switchable visual guidelines provide helpful reference when parking or reversing into tight spaces.
AHD 720P or CVBS Video Output Selectable via loop wire for broad compatibility with a wide range of aftermarket head units and Aerpro Advanced Safety Vision monitors.
IP68 Waterproof Rating Protects the camera from dust, mud, and water ingress for reliable performance in harsh conditions.
Robust ABS Housing Lightweight yet durable construction designed to withstand the demands of tough automotive environments.
Wide Operating Temperature Range Rated from -30°C to +80°C for dependable operation in both extreme heat and cold climates.
Includes 2x 10M Heavy Duty Cables and 2x 4-Pin to RCA Adapters Provides everything needed for flexible integration of both cameras with most aftermarket displays.

Specs:
Vehicle Application:
Mercedes Sprinter 2007-2020
Installation Position: Brake Light
Camera Orientation: Reverse
Selectable (Loop Wire): Yes
Green = AHD/CVBS (Default: AHD)
White = Fixed Guidelines (Default: ON)
Image Sensor Type: CMOS
TV System: NTSC (CVBS)
Video Output: AHD 720P or CVBS
Viewing Angle (Diagonal): 100-110°
Minimum Illumination (Lux): 0.1 Lux
Parking Guidelines: Selectable
Waterproof Rating: IP68
Operating Voltage Range: 12V DC (9-16V)
Current Consumption (mA): 450mA
Operating Temperature Range: -30°C to +80°C
Connector Type (Camera End): 4-Pin Heavy Duty Female
Connector Type (Harness End): 4-Pin Heavy Duty Male (RCA Adapter Included)
Camera Cable Length: 0.5M + 10M Extension
Mounting Type: OEM Replacement
Housing Material: ABS
Dimensions (mm):
Trigger Wire Included: No
Trigger Wire Type: Not Applicable
Adaptable to Factory Screen: Yes – requires optional adaptor (sold separately). 2007-2018 models require APVEU11; 2018-2020 models require APVMC22 or APVMC23 (Factory radio dependent).
Inclusions:
Dual Camera
10-metre Video Cable, 4-pin (x2)
4-pin to RCA Adapter Cable (x2)
Foam Gasket
Rubber O-ring

Vehicles known to work with this product:

• Mercedes Sprinter 2007-2018 (Headunit Dependant)
• Mercedes Sprinter 2018-2020
