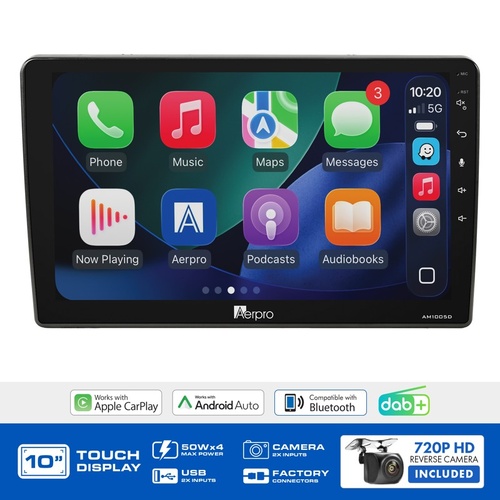

Aerpro AMDVW3 10" Wireless CarPlay & Android Auto Multimedia Kit To Suit Volkswagen Various Models 2006-2015

AMDVW3 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:

• AM1005D Multimedia Receiver
• Matte Black Facia Kit
• Infolink Steering Control Interface Harness
• SWC Patch Lead
• Amplifier Retention Harness
• Antenna Adaptor
• Universal Rear Camera

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: No
• AUX Input: N/A
• USB Input: N/A
• Parking Tones: Yes
• Factory Amplifier: Yes
• Vehicle Menu: Yes
• Other: N/A

---

AM1005D MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:

• Size: 10"
• Resolution: 1024x600
• Touch Screen: Capacitive

OS System: Linux

DIN Size: Fixed Screen Style (Trapezoid)

Power Output:

• MAX Power (4 Ohm): 4CH x 50W

Media Playback: MP3 / MP4 / MKV / FLAC / Xvid

Device Ports:

• USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
• USB2 (Rear): Media with Charging Function – 5V / 1.5A
• USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

• Rear A/V Input (RCA Type – 3pcs): Yes
• Composite Video Output: Yes (Two)
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth:

• Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Bluetooth Version: V5
• Microphone: Internal + External Microphone
• ID3 Tag/Information (Artist, Album, Song): Yes
• HFP Profile: HFP 1.6 (HD Voice)

Tuner:

• DAB: Yes
• AM/FM (# of Presets): AM 12 / FM 18
• FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
• AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
• RDS: Yes

RCA Preamp Outputs:

• RCA Preamp Output: 4V, 5 Channel – 3 Pair (Front / Rear / Subwoofer)
• Subwoofer Level Control: Yes
• Preamp Voltage: 4V p-p

Tone Control:

• 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
• Loudness: Yes
• LPF – Frequencies (Sub): Yes
• Preset EQs: 6+2 Custom
• Time Alignment: Yes

Other Features:

• Steering Wheel Control: Yes, with Aerpro SWC Adaptor
• OSD Language: English
• LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)

Inclusions:

• 10" Fixed Headunit (Trapezoid)
• Mounting Hardware Screws
• Wiring Harness with ISO Connection
• AV, USB and Camera Harnesses
• DAB Antenna
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet

---

Camera Specifications:

Inclusions:

• Surface Mount Camera (wired)
• 6m of Video Cable (RCA) with in-line Reverse Trigger

Mount Type: Surface Mount

Camera Type: Front, Rear Or Reverse

Lens Angle: 110 Degree

---

IMPORTANT INFORMATION:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

This kit includes an Infodaptor Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & amplified system. The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution. Suits vehicles with White MFD only.

(*) Due to the size of the head unit, please be aware of the following:

• Amarok (2011-2016): Kit may partially cover top buttons
• Golf (2004-2009): Kit covers vent dial, may still be accessible but not tested.
• Jetta (2006-2011) Kit covers vent dial, may still be accessible but not tested
• Passat (2006-2015): Kit covers part of hazard or clock on some models.
• Polo (2010-2015): Kit covers part of buttons.
• Scirocco (2009-2014): Kit covers vent adjusters.
• Tiguan (2008-2014): Kit partially covers hazard button.
