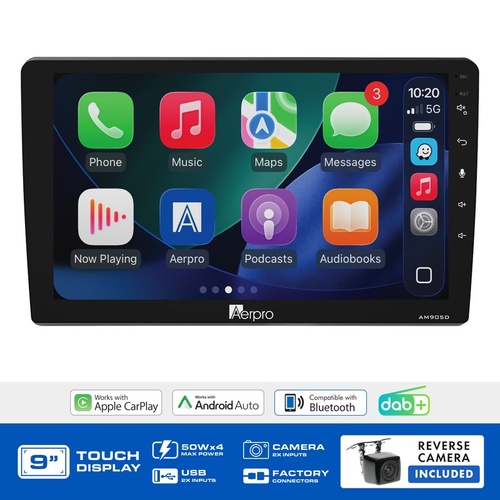

Aerpro AMDVW13 9" CarPlay Multimedia Kit To Suit Volkswagen Various Models 200

Aerpro AMDVW13 9" Wireless CarPlay & Android Auto Multimedia Kit To Suit Volkswagen Various Models 2006-2015

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

Description
Specifications

Upgrade your Volkswagen Various Models 2006-2015 with the Aerpro AMDVW13 9" multimedia kit, featuring wireless Apple CarPlay and Android Auto, DAB+ and a reverse camera.

Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Volkswagen Various Models (2006-2015).
Vehicle Feature Retention: Retains steering wheel controls (including phone button) and vehicle menu.
Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
Surface Mount Camera Included: Clear picture quality with a 110 degree field of view, optional parking guidelines and IP67 rating — mountable as a front, rear or reverse camera.
High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.

To suit vehicle:

Volkswagen EOS 2007-2014
Volkswagen Golf 2009-2013 MK6
Volkswagen Passat 2006-2015
Volkswagen Polo 2010-2014
Volkswagen Scirocco 2009-2014
Volkswagen Tiguan 2008-2014

(AMDVW13)

AMDVW13 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:

AM905D Multimedia Receiver
Matte Black Facia Kit
Infolink Steering Wheel Control Interface Harness
SWC Patch Lead
Amplifier Retention Harness
Antenna Adaptor
Universal Rear Camera

Vehicle Feature Retention:

Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: No
AUX Input: N/A
USB Input: N/A
Parking Tones: No
Factory Amplifier: Yes (model dependant**)
Vehicle Menu: Yes
Other: N/A

AM905D MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:

Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive

OS System: Linux

DIN Size: Fixed Screen Style (Trapezoid)

Power Output:

MAX Power (4 Ohm): 4CH x 50W

Media Playback: MP3 / MP4 / MKV / FLAC / Xvid

Device Ports:

USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
USB2 (Rear): Media with Charging Function – 5V / 1.5A
USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

Rear A/V Input (RCA Type – 3pcs): Yes
Composite Video Output: Yes (Two)
Reverse Camera Input: Yes (720P AHD Compatible)
Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth:

Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V5
Microphone: Internal + External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile: HFP 1.6 (HD Voice)

Tuner:

DAB: Yes
AM/FM (# of Presets): AM 12 / FM 18
FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
RDS: Yes

RCA Preamp Outputs:

RCA Preamp Output: 4V, 5 Channel – 3 Pair (Front / Rear / Subwoofer)
Subwoofer Level Control: Yes
Preamp Voltage: 4V p-p

Tone Control:

13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
Loudness: Yes
LPF – Frequencies (Sub): Yes
Preset EQs: 6+2 Custom
Time Alignment: Yes

Other Features:

Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)

Inclusions:

9" Fixed Headunit (Trapezoid)
Mounting Hardware Screws
Wiring Harness with ISO Connection
AV, USB and Camera Harnesses
DAB Antenna
3 Wire Learning SWC Lead
External Microphone with Mount
GPS Antenna with Adhesive Pad
QR Digital Manual Leaflet

Camera Specifications:

Inclusions:

Surface Mount Camera (wired)
6m of Video Cable (RCA) with in-line Reverse Trigger

Mount Type: Surface Mount

Camera Type: Front, Rear Or Reverse

Lens Angle: 110 Degree

IMPORTANT INFORMATION:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

Only suitable for vehicles with white MFD

(**) Factory amplifier retention:

Compatible with factory Blaupunkt amplified systems.
Not compatible with factory Panasonic amplified systems, for these vehicles please use the Aerpro AMDVW2 or AMDV12 Head Unit Upgrade Kit.
May need a trigger wired in for the amplifier.
Please be aware when installing a High Definition Camera, the camera resolution will be reduced using this product.
