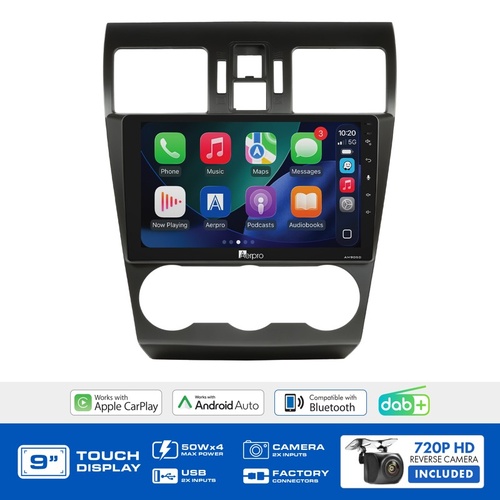

Aerpro AMDSU12 9" Wireless CarPlay & Android Auto Multimedia Kit To Suit Subaru WRX 2014-2015 (Non-Nav)

Aerpro AMDSU12 9" Wireless CarPlay & Android Auto Multimedia Kit To Suit Subaru WRX 2014-2015 (Non-Nav)

SKU:AMDSU12

$799.99


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

Upgrade your Subaru WRX (2014-2015, without factory navigation) with the Aerpro AMDSU12 9" multimedia kit, featuring wireless Apple CarPlay and Android Auto.

  • Complete Head Unit Upgrade Kit: Includes all the parts required to complete the installation and retain important vehicle features for Subaru WRX (2014-2015) - Without Navigation.
  • Vehicle Feature Retention: Retains steering wheel controls, USB input and factory reverse camera.
  • Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
  • Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
  • Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
  • Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
  • USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
  • 720P AHD Universal Rear Camera Included: Improve visibility and confidence when reversing, with an additional camera input available for a front or towing camera.
  • High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
  • Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.

To suit vehicle:

  • Subaru WRX 2014-2015 (without factory navigation)

(AMDSU12)

AMDSU12 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:

  • AM905D Multimedia Receiver
  • Matte Black Facia Kit
  • Steering Wheel Control Interface Harness
  • Antenna Adaptor
  • USB Retention Adaptor
  • 720P AHD Universal Rear Camera

Vehicle Feature Retention:

  • Steering Wheel Controls: Yes
  • Factory Reverse Camera: Yes (in top MFD)
  • AUX Input: No
  • USB Input: Yes
  • Parking Tones: N/A
  • Factory Amplifier: N/A
  • Vehicle Menu: N/A
  • Other: N/A

AM905D MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:

  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive

OS System: Linux

DIN Size: Fixed Screen Style (Trapezoid)

Power Output:

  • MAX Power (4 Ohm): 4CH x 50W

Media Playback: MP3 / MP4 / MKV / FLAC / Xvid

Device Ports:

  • USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
  • USB2 (Rear): Media with Charging Function – 5V / 1.5A
  • USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

  • Rear A/V Input (RCA Type – 3pcs): Yes
  • Composite Video Output: Yes (Two)
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth:

  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile: HFP 1.6 (HD Voice)

Tuner:

  • DAB: Yes
  • AM/FM (# of Presets): AM 12 / FM 18
  • FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
  • RDS: Yes

RCA Preamp Outputs:

  • RCA Preamp Output: 4V, 5 Channel – 3 Pair (Front / Rear / Subwoofer)
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p

Tone Control:

  • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF – Frequencies (Sub): Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes

Other Features:

  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)

Inclusions:

  • 9" Fixed Headunit (Trapezoid)
  • Mounting Hardware Screws
  • Wiring Harness with ISO Connection
  • AV, USB and Camera Harnesses
  • DAB Antenna
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet

AHD Camera Specifications:

  • Inclusions: 720P AHD Universal Rear Camera (wired)
  • Mount Type: Surface Mount
  • Camera Type: Rear / Reverse
  • Image Sensor: Sony 225, 1/3 CMOS AHD
  • Lens Angle: 150 Degree

IMPORTANT INFORMATION:

  • Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
  • Reverse Camera is retained in Top MFD.
  • USB Input Retention uses the USB input on the rear of the head unit.
  • Suits models without factory navigation.
  • This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
