Aerpro AMCFO10 9" Wireless CarPlay & Android Auto Multimedia Kit To Suit Ford Focus LZ 2015-2018

Aerpro AMCFO10 9" Wireless CarPlay & Android Auto Multimedia Kit To Suit Ford Focus LZ 2015-2018

SKU:AMCFO10

$999.99


In Stock
Add To Compare

Calculate Shipping

Standard Shipping - $0.00
Shipping with Signature

Upgrade your Ford Focus LZ (8" SYNC 3 models) with the Aerpro AMCFO10 9" multimedia kit, featuring wireless Apple CarPlay and Android Auto.

  • Vehicle Feature Retention: Retains steering wheel controls (including phone button), factory reverse camera (if equipped), parking tones (if equipped) and vehicle menu.
  • Large 9" Capacitive Touchscreen Display: Crisp 1024x600 resolution with smooth, responsive control for easy navigation of maps, media, and menus.
  • Wireless Apple CarPlay & Android Auto: Instantly access maps, music, calls, and messages without plugging in your phone, or connect via USB for wired operation and charging.
  • Built-In DAB+ Digital Radio: Enjoy crystal-clear digital sound quality and a wider range of stations, plus AM/FM tuning with RDS for all your broadcast preferences.
  • Bluetooth Hands-Free Calling & Audio Streaming: Bluetooth V5 with HD Voice support, internal and external microphone options, and full phonebook and audio streaming capability.
  • USB Media Playback Support: Play music, videos, and photos directly from a USB drive in popular file formats.
  • High-Power Audio with Advanced Tuning: 4 x 50W Max output, 5-channel 4V RCA preouts, 13-band EQ, time alignment, and subwoofer control for clear, powerful sound.
  • Multi-Colour Key Illumination: Customisable 6-colour button lighting to match your vehicle's interior.

To suit vehicle:

  • Ford Focus 2015-2018 LZ (8" factory display SYNC 3 models only)

(AMCFO10)

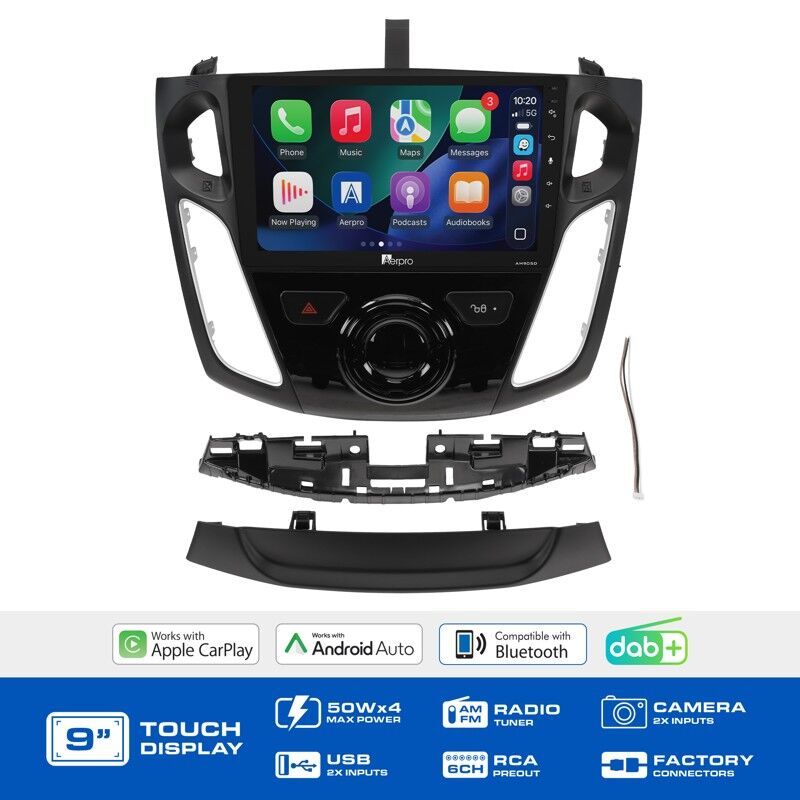

AMCFO10 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:

  • AM905D Multimedia Receiver
  • Black Facia Kit
  • Steering Wheel Control Infolink Harness
  • Antenna Adaptor
  • Camera Retention Adaptor

Vehicle Feature Retention:

  • Vehicle menus: Yes
  • OEM amplifier: Yes
  • OEM reverse camera: Yes
  • OEM AUX input: No
  • OEM USB input: No
  • OEM antenna: No
  • Other: Climate Control and Parking Visualisation on the aftermarket display (if equipped)

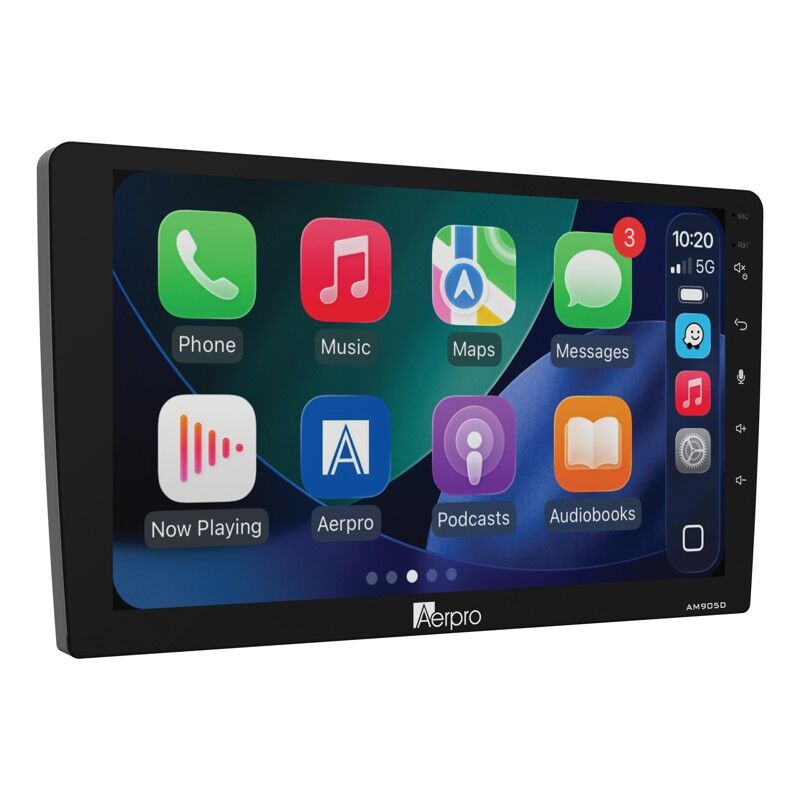

AM905D MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:

  • Size: 9"
  • Resolution: 1024x600
  • Touch Screen: Capacitive

OS System: Linux

DIN Size: Fixed Screen Style (Trapezoid)

Power Output:

  • MAX Power (4 Ohm): 4CH x 50W

Media Playback: MP3 / MP4 / MKV / FLAC / Xvid

Device Ports:

  • USB1 (Rear): Apple CarPlay & Android Auto with Charging Function – 5V / 1.5A
  • USB2 (Rear): Media with Charging Function – 5V / 1.5A
  • USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

  • Rear A/V Input (RCA Type – 3pcs): Yes
  • Composite Video Output: Yes (Two)
  • Reverse Camera Input: Yes (720P AHD Compatible)
  • Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth:

  • Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
  • Bluetooth Version: V5
  • Microphone: Internal + External Microphone
  • ID3 Tag/Information (Artist, Album, Song): Yes
  • HFP Profile: HFP 1.6 (HD Voice)

Tuner:

  • DAB: Yes
  • AM/FM (# of Presets): AM 12 / FM 18
  • FM Frequency Span (MHz): 87.5–108.0MHz (0.05MHz Step)
  • AM Frequency Span (KHz): 522–1710KHz (9KHz Step)
  • RDS: Yes

RCA Preamp Outputs:

  • RCA Preamp Output: 4V, 5 Channel – 3 Pair (Front / Rear / Subwoofer)
  • Subwoofer Level Control: Yes
  • Preamp Voltage: 4V p-p

Tone Control:

  • 13-Band EQ: 32/63/125/250/500/1K/2K/4K/8K/10K/12K/14K/16K
  • Loudness: Yes
  • LPF – Frequencies (Sub): Yes
  • Preset EQs: 6+2 Custom
  • Time Alignment: Yes

Other Features:

  • Steering Wheel Control: Yes, with Aerpro SWC Adaptor
  • OSD Language: English
  • LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)

Inclusions:

  • 9" Fixed Headunit (Trapezoid)
  • Mounting Hardware Screws
  • Wiring Harness with ISO Connection
  • AV, USB and Camera Harnesses
  • DAB Antenna
  • 3 Wire Learning SWC Lead
  • External Microphone with Mount
  • GPS Antenna with Adhesive Pad
  • QR Digital Manual Leaflet

IMPORTANT INFORMATION:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

Suits 8" factory display SYNC 3 models only.

This kit includes an Infolink Interface which allows vehicle information to be displayed & accessed on the aftermarket head unit, retains steering wheel controls, retains parking tones & retains the factory camera (if equipped). The Interface connects to the rear camera input on the aftermarket head unit and the output for this kit will be low resolution.
