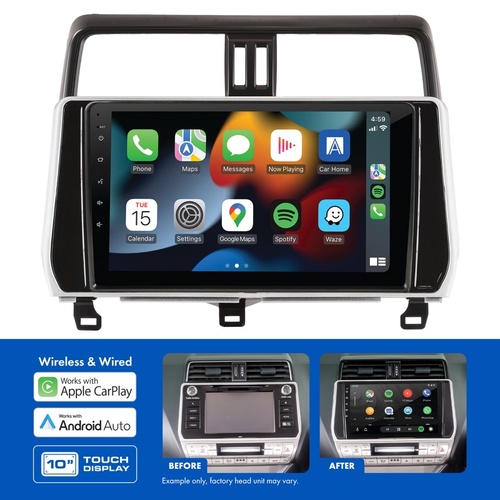

Aerpro AMATO22 10" Wireless CarPlay & Android Auto Multimedia Receiver To Suit Toyota Prado GXL 2017-2020

AMATO22 HEAD UNIT UPGRADE KIT SPECIFICATIONS:

Kit Inclusions:

• AM10X Multimedia Receiver
• Gloss Black and Silver Facia Kit
• Steering Wheel Control Interface Harness
• Antenna Adaptor
• Camera Retention Adaptor
• USB Retention Adaptor

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes
• AUX Input: Yes
• USB Input: Yes
• Parking Tones: N/A
• Factory Amplifier: Yes
• Vehicle Menu: No
• Other: N/A

---

AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:

LCD Display:

• Size: 10"
• Resolution: 1024x600
• Touch Screen: Capacitive (G+G)

System Specifications:

• OS System / CPU: Linux 3.4.5 / SPHE8368U
• RAM / Flash Memory: 128MB / 256MB

DIN Size: 2 DIN Short Body

Power Output

• Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
• MAX Power (4 Ohm): 4CH x 50W

Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4

Device Ports

• USB 1 (Rear) Playback Formats: CP,AA & Media
• USB 2 (Rear) Playback Formats: Media
• USB (Rear) Power - Voltage/Amps: 5V/1.5A Each
• USB MAX Capability: FAT32_32GB

Aux Inputs / Outputs:

• Rear A/V Input (RCA Type - 3pcs): Yes
• Composite Video Outputs: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)

Bluetooth:

• Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Bluetooth Version: V4.2+EDR
• Microphone: Built-in & External Microphone
• ID3 Tag/Information (Artist, Album, Song): Yes
• HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6

Tuner:

• AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
• FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
• AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
• RDS: Yes
• FM Antenna Connector Impedance: 50 Ohm
• FM Tuner Connector: Motorola

RCA Preamp Outputs:

• RCA Preamp Output: 2-Pair (Front / Rear)
• Subwoofer RCA Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage (1.2,2,4,5,6): 4V p-p

Tone Control:

• 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
• Loudness: Yes
• LPF - Frequencies (Sub): Yes
• 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft

Other Features:

• Steering Wheel Control: Yes, with Aerpro SWC Adaptor
• OSD Language: English
• LED Colour (Buttons / Keys): White

Accessories:

• Power Harness: Yes with ISO/3.5mm jack
• AV-In Cable (RCA with Audio L/R, Video In): Yes
• Reverse Camera Input (with 12V power supply to the camera): Yes
• 4.1CH Audio Out Cable: Yes
• External Microphone: Included

---

IMPORTANT INFORMATION:

Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.

Reverse Camera Retention uses the reverse camera input of the head unit.

USB Input Retention uses the USB input on the rear of the head unit.

AUX Input Retention uses the RCA AUX input on the rear of the head unit.

Toyota connect features like calendar and trip info that appear on the factory screen are lost.
