Aerpro AKHY25 9" Install Kit To Suit Hyundai Santa Fe 2013-2018 (Pioneer DMH-AP6650BT & Kenwood DMX80AXS)

Overview

The Aerpro AKHY25 is a complete 9 inch installation kit to suit the Hyundai Santa Fe (DM, 2013-2018). It packs the facia, steering wheel control interface and retention adaptors needed to fit a 9" trapezoid-style head unit, so you keep important factory features such as the steering wheel buttons (including the phone button), the factory reverse camera (if equipped) and the factory USB input.

The kit is designed for universal trapezoid-shaped head units such as the Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X and various Android head units. It is not suitable for standard single DIN or double DIN radios. The head unit ISO harness is not included; Aerpro recommends pairing it with the Aerpro APP8 secondary ISO harness (sold separately).

Key Features

• To suit Hyundai Santa Fe (2013-2018) vehicles
• Includes the parts needed to complete the install and retain key vehicle features
• Retains steering wheel controls (including the phone button)
• Retains the factory reverse camera (if equipped) and the factory USB input
• Compatible with Aerpro APP8 aftermarket head unit harness adaptors for a simpler install
• Suits universal 9" trapezoid head units (e.g. Pioneer DMH-AP6650BT, Kenwood DMX80AXS, Aerpro AM9X)

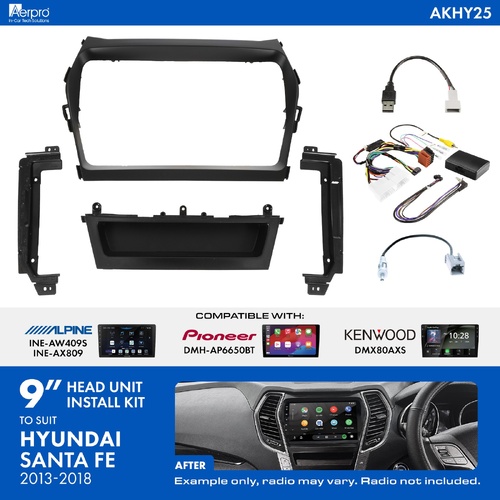

What's Included

• Matte black facia kit
• Steering wheel control interface harness
• SWC patch lead
• Antenna adaptor
• Camera retention adaptor
• Factory USB retention harness

Important Information

• Head unit ISO harness not included. Aerpro APP8 secondary ISO harness recommended (sold separately).
• Not suitable for standard DIN or double DIN radios.
• Not compatible with the Aerpro AM1205D 12.3" head unit.
• Pioneer CAN Bus features are not supported. The kit includes a steering wheel control adaptor: on a Pioneer unit, skip "CAN Bus Adapter" at first boot and instead go to Menu > Steering Wheel Control > With Adapter.
• Feature retention depends on the head unit used.
